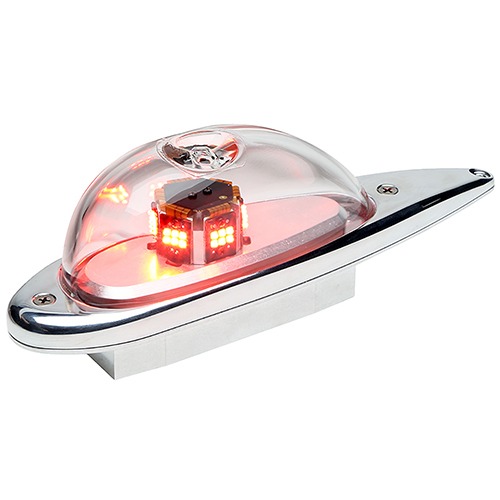

90724 Series LED Anti-Collision Light | 5-Hole Rudder Mount, Citation Aircraft
Product Description
The 90724 Series self-contained, Anti-Collision Light combines solid state circuitry with LED lighting technology. The result is these anti-collision lights have no moving parts, no EMI/RFI, no inrush current spikes, and crisp on/off cycles. Several models are available to provide compatibility with existing mounting patterns and profiles which eliminate the need to alter the aircraft.
This 90724 Series anti-collision light (EDMO# 9072413) has a 5-hole rudder mount, operates on 28 VDC, and for the Citation Aircraft.
Features
No product features currently available.
Specifications
Power Consumption:
0.45 Amps @ 28 VDC
LED Color:
Aviation RED
Weight:
1.8 lb (816 g), unless otherwise noted
Exposed Height:
2.70 in (69 mm)
Lens Color:
Clear glass
Replaces:
Whelen: 90044 Series and Grimes: G9950-( ), 40-0100-( ), 30-2140-( ), 40-0117-( ), 40-0127-( ), 30-2647-( )
Approvals:
STC: None
FAA TSO-C96a Class III
Product Codes
- Mfr Part No:01-0790724-13
- EDMO #:9072413
- Brand:WHELEN ENGINEERING
- Category:Electrical & Lighting
