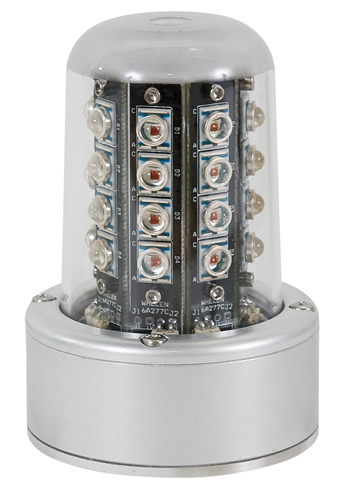

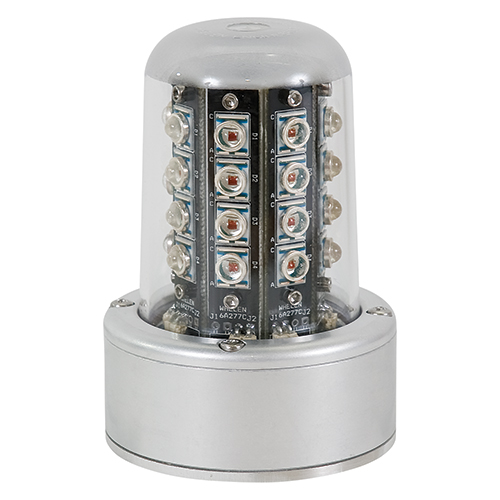

90520 Series LED Flashing Anti-Collision Beacon | Red and White, 28 VDC, 3.75 in Lower Mount, MS Connector
Product Description
The 90520 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class III 100 effective candlepower). They are designed to replace strobe lightheads as small as the A470A with available models to replace HR self-contained beacons (HRCFA) or our legacy 70900 LED beacon. Mounting plate included with assembly.
This 90520 series beacon (EDMO# 9052015) is a 28 VDC unit with red and white LEDs, a 3.75-inch lower mounting adapter, and an MS connector.
Features
- 90520 series flashing anti-collision beacon
- 28 VDC unit with red and white LEDs
- 3.75-inch lower mounting adapter with MS connector
- FAA TSO-C96a Class III approved
Specifications
Weight:
0.65 lbs (295 g)
Dimensions:
2.6 x 3.74 in (66 x 95mm)
Voltage:
28 VDC
Current:
0.45 A (Average), 2.0 A (Peak) @ 3 sec
Lens:
Clear Polycarbonate
LED Color:
Red & White
Mounting Solution:
3.75 in, lower mount
Product Codes
- Mfr Part No:01-0790520-17
- EDMO #:9052017
- Brand:WHELEN ENGINEERING
- Category:Electrical & Lighting
