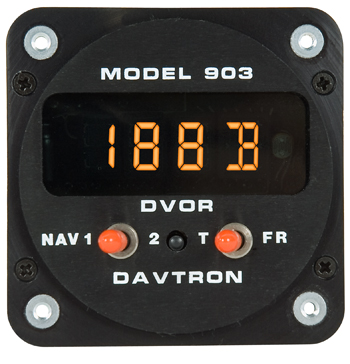

M903ID Digital VOR Gauge | Rear Mounted, Clock Mounted

Product Description
The M903 digital VOR gauge is a computer based product that brings digital VOR information to the pilot at the push of a button. The unit displays the radial position of the aircraft, both to or from the VOR station. The radial readout is the actual one the aircraft is on and is updated every 0.8 seconds. The display makes the VOR step down fixes and intersections easily read with a quick glance by the pilot. The pilot can see how fast they are approaching the fixes rather than having the needle on the OBI hard over to one side. This model is rear mounted and clock mounted, and also includes an alphanumeric station identifier.
Features
- Automatic VOR position orientation
- Localizer deviation and centerline
- Alphanumeric station identifier
- Instant to/from switching
- Digital filtering and signal processing
- Automatic Dimming
- Sunlight readable display
- Serial ASCII output of station and radial off flag
- FAA-PMA approved
Specifications
Weight:
6 ounces
Dimensions:
2.375 x 2.375 x 1.875 in, max
DVOR Accuracy:
+/- 2 degrees
Input Voltage:
14 to 28 Volt
Input Signal:
0.35 to 10 Volts
Supply Current:
0.3 Amps
Operating Temperature Range:
-20°C to +55°C
Product Codes
- Mfr Part No:M903ID-2
- EDMO #:903ID-2
- Brand:DAVTRON
- Category:Instruments
