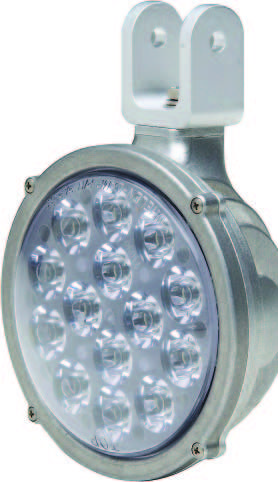

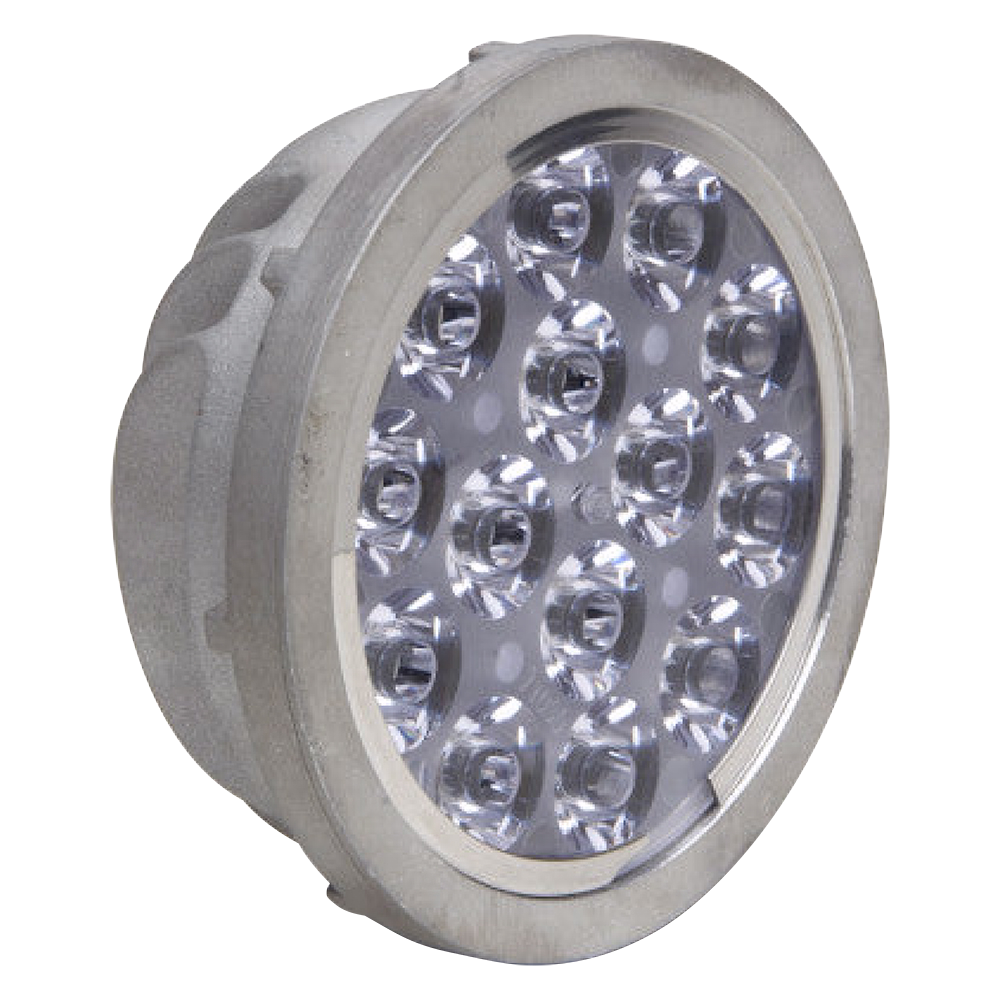

90361 Series LED Taxi Light Assembly | 4-inch Round, External Mount, 28 VDC

Product Description
The 90361 series is a self-contained all LED landing light assembly. The design is intended to provide a solution to the needs for a taxi & landing light on a wide variety of aircraft. All current source and electronic circuitry is contained within the housing . Unit is available in several mounting configurations to retrofit existing typical PAR-36 lighting. Outer lens allows for mounting externally on aircraft, option of diffusion lens available upon request. Item is supplied with flying leads.
This 90361 series LED light assembly (EDMO# 9036125) is a 28-Volt taxi light with an external mount and spreader optics.
Features
28 VDC, 4-inch LED Taxi Light
Externally mounted
Specifications
Weight:
1.3 lb (590 gm)
Dimensions:
4.70 x 2.87 in (119 x 73 mm)
Power Consumption:
1.5 Amps @ 28 VDC
Lens:
Clear Polycarbonate
Product Codes
- EDMO #:9036125
- Brand:WHELEN ENGINEERING
- Category:Electrical & Lighting
- ECCN:EAR99
