90361 Series LED Landing Light Assembly | 4-inch Round, External Mount, 28 VDC

WHELEN ENGINEERING

CALL FOR PRICING
Special order
EDMO#9036120
MFR#9036120

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

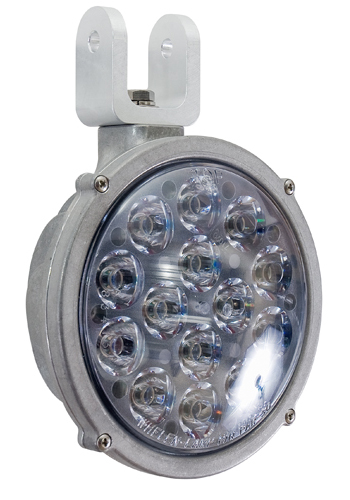

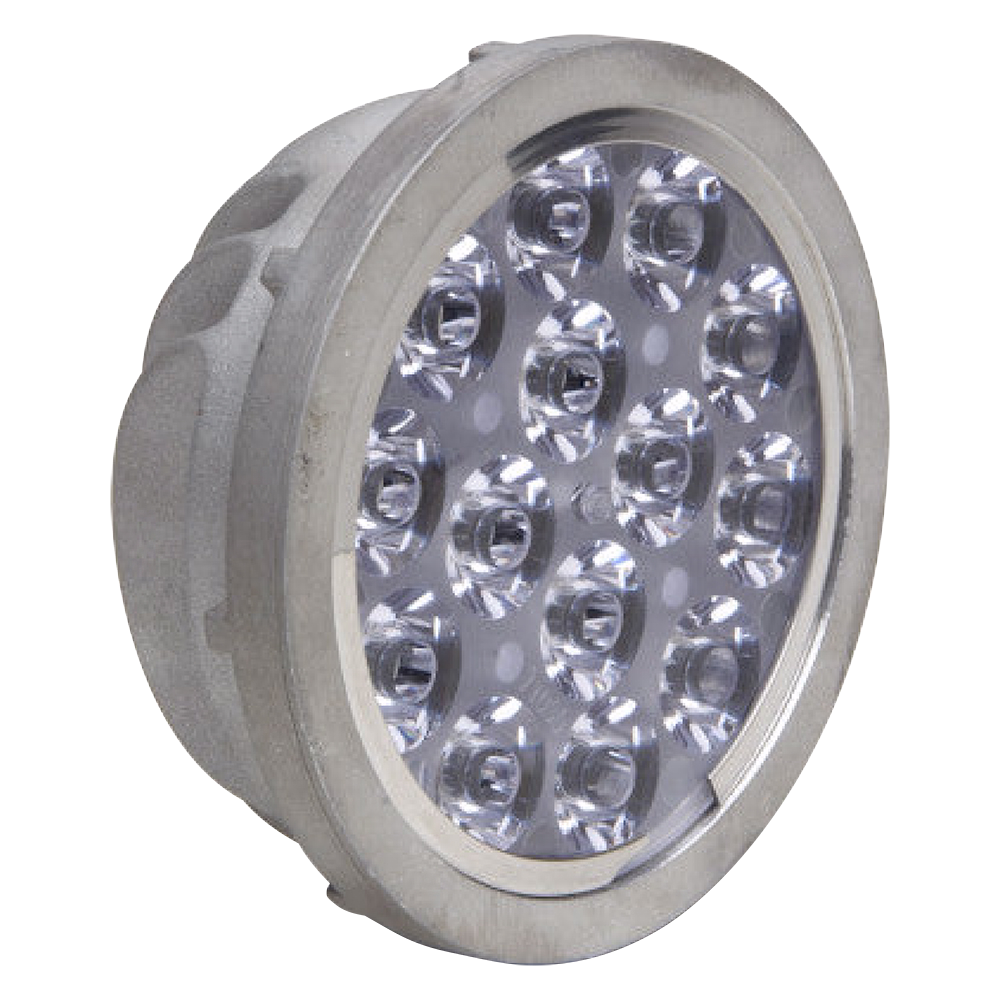

The 90361 series is a self-contained all LED landing light assembly. The design is intended to provide a solution to the needs for a taxi & landing light on a wide variety of aircraft. All current source and electronic circuitry is contained within the housing . Unit is available in several mounting configurations to retrofit existing typical PAR-36 lighting. Outer lens allows for mounting externally on aircraft, option of diffusion lens available upon request. Item is supplied with flying leads.

This 90361 series LED light assembly (EDMO# 9036120) is a 28-Volt landing light with an external mount.

Features

  • 28 VDC, 4-inch LED Landing Light

  • Externally mounted

Specifications

Weight:
1.3 lb (590 gm)

Dimensions:
4.70 x 2.87 in (119 x 73 mm)

Power Consumption:
1.5 Amps @ 28 VDC

Lens:
Clear Polycarbonate

Product Codes

  • Mfr Part No:9036120
  • EDMO #:9036120
  • Brand:WHELEN ENGINEERING
  • Category:Electrical & Lighting
  • ECCN:EAR99
  • SCHEDULE B CODE:8539.10.0030
