AC Outlet | 115V, 60 Hz, 3 prong | For TI250, TI500, TI1200, TI1202, and TI2000 Inverters

9018708-1

MID-CONTINENT INSTRUMENTS AND AVIONICS

CALL FOR PRICING
Available To Order
EDMO#9018708-1
MFR#9018708-1

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

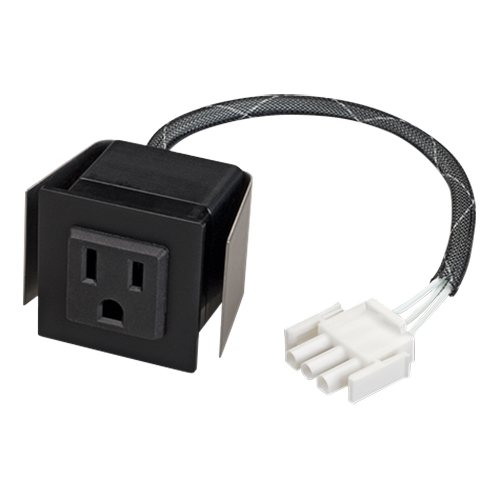

True Blue Power® AC outlets provide you with convenient access to power. You can easily mount the three-prong (North American) and Universal outlets in the cockpit, cabin and galley. Both outlets are rated up to 15 amps of power and are compatible with all True Blue Power inverters.

This AC outlet (EDMO# 9018708-1) is a 3 prong, 115-Volt outlet for use with TI250, TI500, TI1200, TI1202, and TI2000 inverters.

Features

  • Rated up to 15 amps per outlet
  • Easily mounted in the cockpit, cabin and galley
  • Lightweight — 0.30 lbs
  • FAA Parts Manufacturer Approval (PMA)
  • Compatible with True Blue Power and industry-standard 115 VAC and 230 VAC inverters

Specifications

Weight:
0.30 lbs (0.14 kg)

Dimensions:
1.75 x 1.75 x 1.70 in

Outlet Type:
North American

Input Voltage:
115 VAC at 60 Hz

Output Current:
15 amps (rated)

Case:
Aluminum

Connector:
Mate-N-Lok

Compatible Inverters:
TI250, TI500, TI1200, TI1202, and TI2000

Product Codes

  • Mfr Part No:9018708-1
  • EDMO #:9018708-1
  • Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
  • Category:Electrical Interconnect
