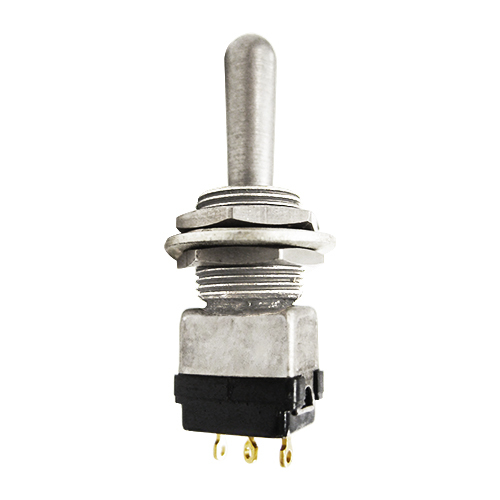

8868 Series Miniature Positive Action Toggle Switch | SPDT, ON-ON(MOM)
Product Description
The 8868K series toggle switches have sealed bushings to protect from dust, moisture, and other contaminates. The miniature switches have a positive make and break action.
Version (EDMO# 8868K8) is a single-pole, double-throw toggle switch. Positions: ON-ON(momentary)
Features
- Threaded panel mount
- Current rating versatility
- Non-teasible mechanism for all but center ""ON"" circuits
- Dry circuit (logic level loads) to power switching levels
- Solder lug terminals
- Wiping action contacts
- Bushing seal or bonded seal per MIL-DTL-8834
- MS approved and QPL'd per MIL-DTL-8834
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Specifications
Bushing:
15/32" - 32 thread
Temperature Range:
-67°F to +160°F (-55°C to +71°C)
Contact Current Max:
5A
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact Configuration:
Single-pole, double-throw (SPDT)
Switch Operation:
ON-ON(MOM)
MS Part Number:
MS21351-321
Product Codes
- Mfr Part No:8868K8
- EDMO #:8868K8
- Brand:EATON
- Category:Electrical Interconnect
