8800 Digital Radio Test Set | Mission Test System, Motorola Radios Only

Product Description

The 8800SX Digital Radio Test Set expands upon the features of the 8800 series with a 10 MHz external reference and enhanced software which boosts speed and testing of land mobile radio systems. It accommodates the testing of new and legacy land mobile radios by providing a wide range of digital and analog test features in a hybrid, portable design equipped with the industry's largest color touch-screen display. This test set provides higher direct power measurements up to 125 watts and a measurement range from -140 dBm to 500 watts. The 8800SX is a one-box solution that provides advanced features including auto-test, digital modulation analysis plots, and an internal 500 watt (4% accuracy) in-line power meter.

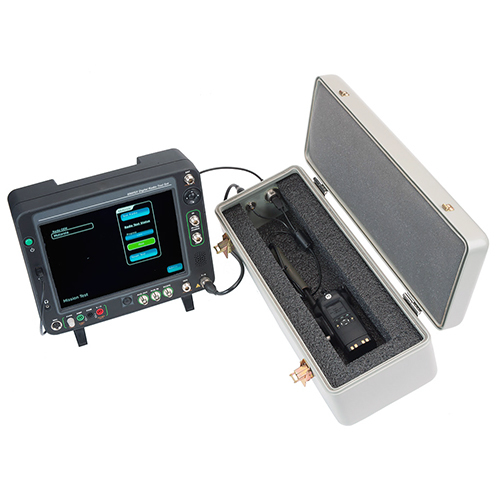

This 8800MT Mission Test System (EDMO# 8800MT) is an 8800SX Digital Radio Test Set packaged specifically for testing Motorola radios. It includes the option 30- Mission Test Package (Motorola), 5A fuse, power supply, AC power cord, N(m) to BNC(f) Adapters (qty 3), and Front C.

Features

10 MHz external reference
Automated test and alignment
Wideband analyzer and fast channel analyzer with six color markers
Fast stack: test functions can be stacked on one another and instantly accessed on the large touch screen
Presets: ultra fast store and recall of test setups
Frequency lists: user-defined frequency lists with editable Tx frequency, Tx level, and RX frequency entries
Audio Record/Playback: digital audio quality performance tests
Color meters: color indicates pass/fail results on each meter
Digital modulation plots: distribution, constellation, and eye diagram
TDMA burst profile plot: for DMR only; includes a burst ""mask"" for visual pass/fail
DMM: simple measurement of voltage, current, Ohms; required for automated test and alignment on mobile radios
In-line power meter: internal or external; 500 W input with 4% accuracy
Tracking generator: VSWR, return loss, DTF, and tuning duplexers
Tests AM/FM, P25, P25 Phase II, DMR (MOTOTRBO™), NXDN™, dPMR, ARIB T98, PTC
Multi-language GUI: English, simplified Chinese, traditional Chinese, Spanish, Portuguese, Malay/Indonesian, Korean, Arabic, Polish, Russian, Japanese, German, and French

Specifications

Dimensions:
13.5 x 11.54 x 5.75 in (34.3 x 29.3 x 14.6 cm)

Display Size:
12 in (30.5 cm)

Weight:
17 lb (7.71 kg) base unit (with hardware options)

Internal Battery:
>2.5 hours

Rugged:
30G shock, MIL-STD 28800F Class 3

Measurement Range:
-140 dBm to 500 watts

Power Accuracy:
10% (6% typical)

DMM:
volts, current, ohms

In-Line Power Meter:
500 W, 4% accuracy

Record and Playback:
digital audio quality

Quick Presets:
ultra-fast teste setup

Frequency Lists:
Tx frequency, Tx level, Rx frequency

"Fast Stack":
instant access to multiple meters

Tracking Generator:
VSWR, return loss, distance-to-fault, tuning duplexers

I/O Connections:
T/R: N-Type female
ANT: N-Type female
GEN: N-Type female
Scope: BNC female
AUD IN: BNC female
AUD OUT: BNC female
Headphone jack: 3.5 mm
USB connector (qty 3): USB type A
External 10 MHz reference input: BNC female
Ethernet connector: RJ45
DC Power: 2-position, 2.5 mm jack
GND connector: banana
DMM (qty 3): banana (optional)
IN (In-Line Power Meter): N-type female (optional)
OUT (In-Line Power Meter): N-type female (optional)

DC Operation:
-20°C to 50°C

Relative Humidity:
5 to 95%; MIL-PRF-28800F, Class 3

Shock, Functional:
30 G shock, MIL-PRF-28800F, Class 3

Altitude:
4,600 m, MIL-PRF-28800F, Class 3, battery only
3,048 m, MIL-PFR-28800F, Class 3, AC Power operation

Vibration:
5 to 500 Hz, MIL-PRF-28800F Class 3

AC Input Power (AC to DC converter/Charger Unit):

AC input voltage:
100 - 240 VAC, 1.5 A max, 47 - 63 Hz

AC Input Fluctuation:
Less than 10% of the nominal input voltage

Transient Overvoltage:
According to Installation Category II

Operating Temperature:
0°C to 40°C

Storage Temperature:
-20°C to 85°C

EMI:
EN55022 Class B, EN61000-3-2, Class D

Safety:
UL 1950, CSA 22.2 No 234 and No 950, IEC 950/EN 60950

DC Input Power:

Voltage Range:
11 to 24 VDC

Maximum Power:
55W, 65W charing optional battery

Typical Power:
30 W

Fused:
5A, 32 VDC, Type F

Product Codes

Mfr Part No:142505
EDMO #:8800MT
Brand:VIAVI
Category:Land Mobile Radio Test Sets
