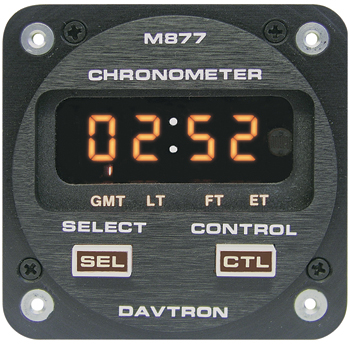

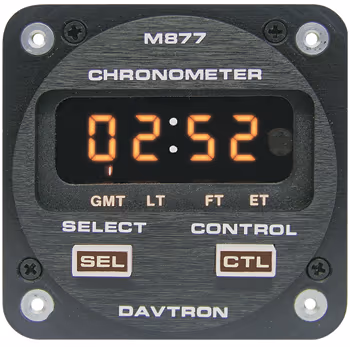

877 Series Digital Chronometer | 5V Lighting, Black Face Plate, Rear Mount
Product Description
Davtron’s 800-series clocks are multi-functional chronometers with an easy to use two-button design. They display universal time, local time, and elapsed time. The 800 series come with two different screen formats, either liquid crystal or incandescent — both with illuminated screens that are readable in high sunlight situations.
This 877 series chronometer (EDMO# 877-5V) features 5V lighting with illuminated buttons and rear mount installation.
Features
- 2-1/4 inch internal mount
- Two-button control system
- Greenwich Mean Time
- Local Time
- Flight time with alarm
- Elapsed time counter with countdown timer
- Elapsed time alarm
- Option audio alarm
- Bright, incandescent, sunlight readable display
- Automatic dimming
- Illuminated buttons and annunciators
- Keep alive battery option
- FAA-PMA approved
Specifications
Weight:
5 oz
Dimensions:
1.875 x 2.375 x 2.81 in
Battery Type:
N size alkaline Model 850
AA size alkaline Model 850
Keep Alive Current:
0.00004 Amps
Input Current:
0.2 Amps
Input Voltage:
14V – 28V (backlight available 5V, 14V, or 28V)
NVIS Option:
NVIS Green A lighting
Face plate:
black with engraved nomenclature
gray with silk-screened nomenclature
Product Codes
- Mfr Part No:M877-5V
- EDMO #:877-5V
- Brand:DAVTRON
- Category:Instruments
