86-30-1 Positioner | MH860 Crimp Tools

86-30-1

DANIELS MFG

CALL FOR PRICING
Special order
EDMO#86-30-1
MFR#86-30-1

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

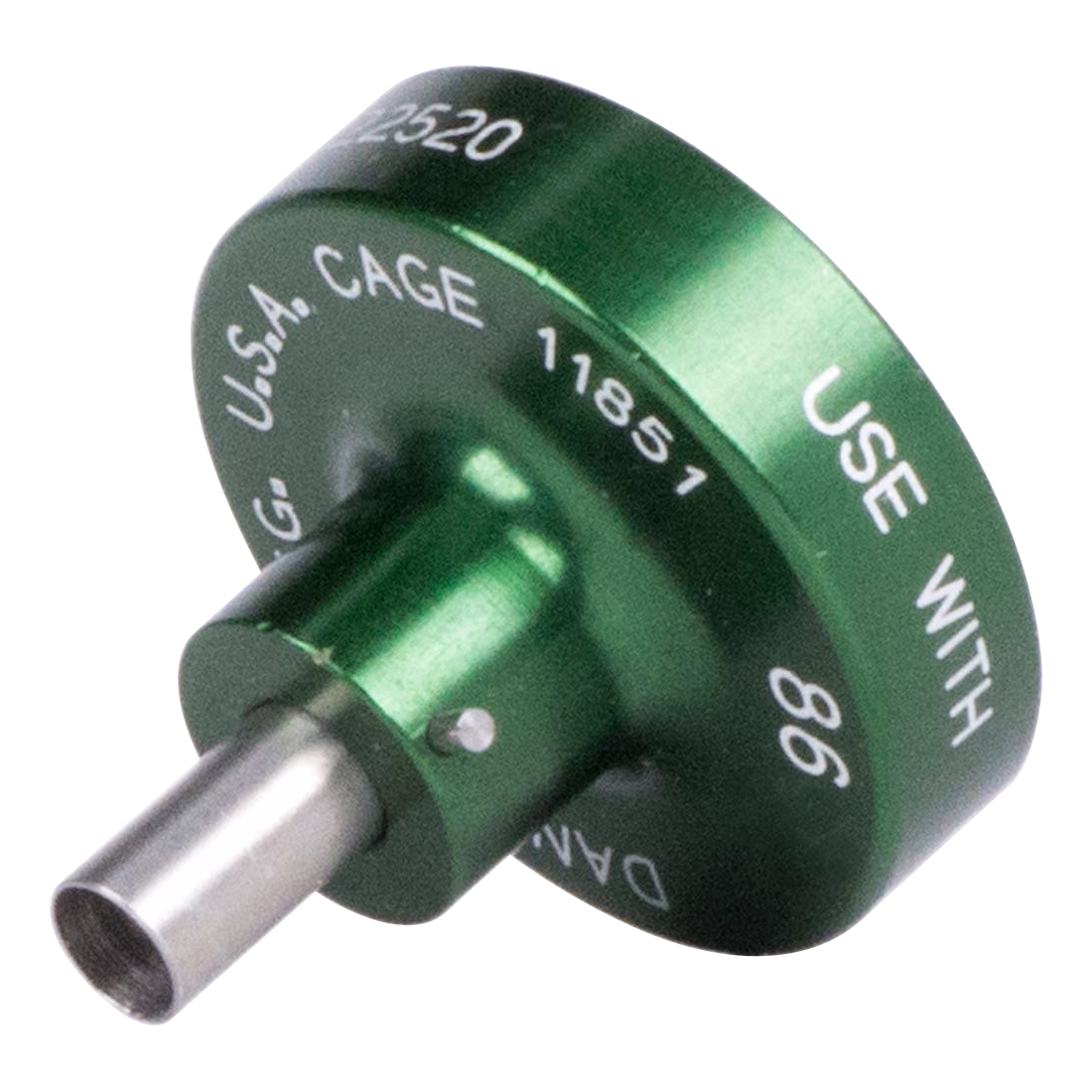

This positioner (EDMO# 86-30-1) is used with the MH860 crimp tools to locate contacts horizontally and vertically between the indenters of the tools.

Features

Contacts Serviced:

  • M39029/11-145 Size 20 Pins for 20–24 AWG wire

  • M39029/12-149 Size 20 Sockets for 20–24 AWG wire

  • M39029/63-368 Size 20 Sockets for 20–24 AWG wire

  • M39029/63-656 Size 20 Sockets for 20–24 AWG wire

  • M39029/64-369 Size 20 Pins for 20–24 AWG wire

  • M39029/64-657 Size 20 Pins for 20–24 AWG wire

  • M39029/93-598 Size 20 Pins for 20–24 AWG wire

  • M39029/94-602 Size 20 Sockets for 20–24 AWG wire

Compatible Coaxial Cables:

  • RG55B/U, RG58C/U, RG141A/U, RG142A/U, RG142B/U, RG178B/U, RG180B/U, RG188/U, RG195A/U, RG196A/U, RG223/U, RG303/U, RG316/U

Compatible Tools:

  • MH860 Adjustable Middle Range 8 Indent Crimp Tool

Specifications

Dimensions:
0.930 x 0.875 in

Locator Hole Dimensions:
0.078 in

Contact Sizes:
20

Wire Sizes:
20–24 AWG

Product Codes

  • Mfr Part No:86-30-1
  • EDMO #:86-30-1
  • Brand:DANIELS MFG
  • Category:Tools & Cases
  • ECCN:EAR99
  • SCHEDULE B CODE:8203.20.6060
