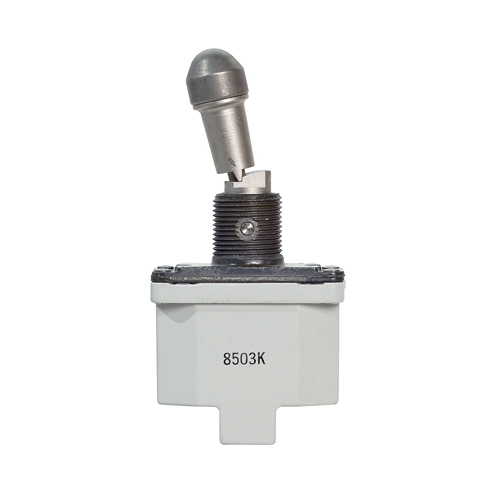

8503 Series Lever Lock Toggle Switch | SPST, ON-OFF, F, Environmentally Sealed
Product Description
The 8503K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates. The lever lock mechanism prevents accidental switch operation.
Version 8503K37 is a single-pole, single-throw toggle switch. Positions: ON-OFF with F style bushing (locked in side opposite keyway)
Features
- Locking lever safety mechanism (must be pulled outward for toggle operation)
- Threaded panel mount
- Thermoset molding materials meet flame retardant requirements
- Molded-in terminal inserts and terminal numbers
- Environmentally sealed per MIL-S-3950
- MS approved and QPL'd per MIL-S-3950
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Specifications
Bushing:
15/32"" - 32 thread
Temperature Range:
-85F to +160F (-65C to +71C)
Contact current max:
20A
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact configuration:
Single-pole, Single-throw (SPST)
Switch operation:
ON-OFF
MS part number:
MS24658-24F
Product Codes
- Mfr Part No:8503K37
- EDMO #:8503K37
- Brand:EATON
- Category:Electrical Interconnect
