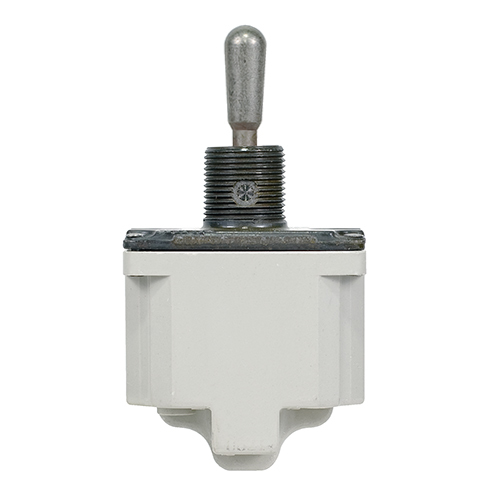

8502 Series Toggle Switch | 4PDT, ON-OFF-ON(MOM), Environmentally Sealed
Product Description
The 8502K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates.
Version (EDMO# 8502K3) is a 4-pole, double-throw toggle switch. Positions: ON-OFF-ON(momentary)
Features
- Threaded panel mount
- Thermoset molding materials meet flame retardant requirements
- Molded-in terminal inserts and terminal numbers
- Environmentally sealed per MIL-S-3950
- MS approved and QPL'd per MIL-S-3950
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Specifications
Bushing:
15/32" - 32 thread
Temperature Range:
-85F to +160F (-65C to +71C)
Contact Current Max:
20A
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact Configuration:
4-pole, Double-throw (4PDT)
Switch Operation:
ON-OFF-ON(MOM)
MS Part Number:
MS24525-31
Product Codes
- Mfr Part No:MS24525-31
- EDMO #:8502K3
- Brand:EATON
- Category:Electrical Interconnect
