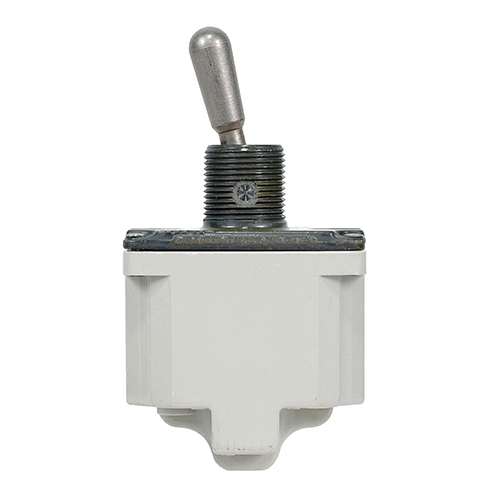

8501 Series Toggle Switch | DPST, ON(MOM)-ON, Environmentally Sealed
Product Description
The 8501K series are environmentally sealed toggle switches that are completely protected from dust, moisture, and other contaminates.
Version 8501K12 is a double-pole, single-throw toggle switch. Positions: ON(momentary)-ON
Features
- Threaded panel mount
- Thermoset molding materials meet flame retardant requirements
- Molded-in terminal inserts and terminal numbers
- Environmentally sealed per MIL-S-3950
- MS approved and QPL'd per MIL-S-3950
- Life: 20,000 operations at rated load 40,000 operations mechanical life
Specifications
Bushing:
15/32"" - 32 thread
Temperature Range:
-85F to +160F (-65C to +71C)
Contact current max:
20A
Contact Voltage AC:
115V nominal
Contact Voltage DC:
28V
Contact configuration:
Double-pole, Single-throw (DPST)
Switch operation:
ON(MOM)-ON
MS part number:
MS24524-32
Product Codes
- Mfr Part No:8501K12
- EDMO #:8501K12
- Brand:EATON
- Category:Electrical Interconnect
