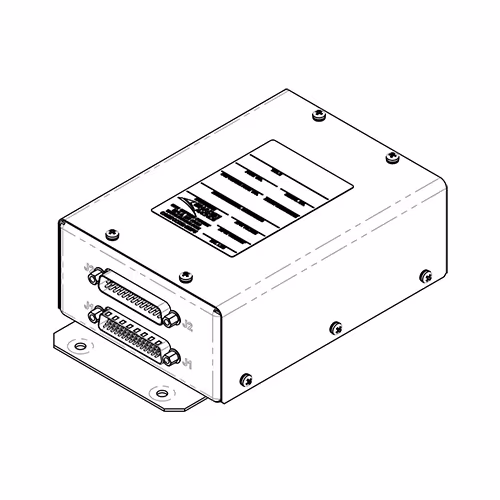

Arinc-Manchester Converter | 18-33VDC, ADS-B
Product Description
The Arinc-Manchester Converter (AMC) is intended to intercept and inject messages between the radio management unit (RMU) and the integrated communications unit. The AMC acts as the controller for the ADS-B compliant transponder via an A-429 bus. Messages from the RMU bus are forwarded to the COM bus while return status messages from the transponder, combined with COM bus data, are transmitted on the RMU bus.
Features
- Allows ADS-B installation
- Controls transponder via A-429 bus
- 25 and 44 pin male D-subminiature connectors
Specifications
Weight:
0.9 lbs
Dimensions:
6.9 x 4.2 x 2.2 in.
Power Supply Voltage:
18 to 33 VDC
Supply Current:
200mA at 28 VDC
Thermal Dissipation:
8 watts typical
Operating Temperature:
-55°C to +70°C
Operating Altitude:
50,000 ft
Connectors:
J1 - 44 pin male D-subminiature
J2 - 25 pin male D-subminiature
Product Codes
- Mfr Part No:833520-01
- EDMO #:833520-01
- Brand:SHADIN LP
- Category:Engine and Fuel Flow Management
