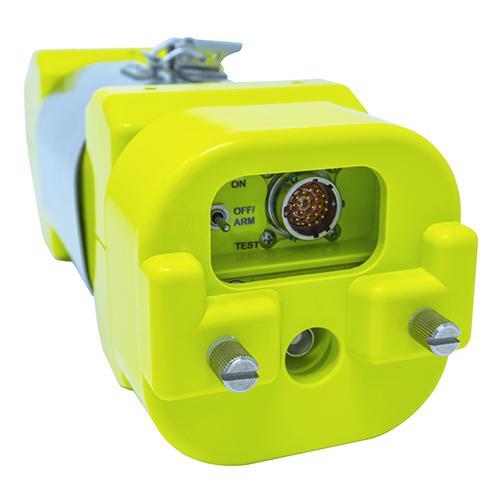

ELT 4000 HM | ELT unit and Alkaline Battery only

Product Description

The ARTEX ELT 4000 HM is a transport-grade Emergency Locator Transmitter (ELT) that uses alkaline batteries as an innovative power source to make this commercial grade ELT completely exempt from FAA special condition requirements. This lowers the cost of ownership with lower battery expense per cycle, no hazmat shipping, and easy disposal.

The ELT 4000 can either be activated manually, with the remote switch, or automatically when the G-switch detects a 2.3G or greater impact; it then alerts the nearest Search and Rescue agency of the emergency. The 406 MHz signal transmits GPS coordinates to Cosas-Sarsat satelletes, and a 121.5 MHz homing signal assists Search and Rescue with finding the location of the crash.

This Transport Grade ELT provides quick-and-easy retrofit opportunities with flexible installation options such as a two-wire remote switch that does not require aircraft power. The ELT 4000 is TSO approved for retrofit installations with legacy switch and antenna systems and uses the same RF output and one coax cable to transmit both 406 and 121.5 MHz. Further reducing costs, this Alkaline ELT includes a built-in ARINC429 navigation interface, and the mounting tray is compatible with Artex C and B series emergency locator transmitter.

This Artex ELT 4000 HM (EDMO# 8271) includes the ELT unit and 5-year alkaline battery only.

*9600 standard baud rate unless otherwise requested.

Specifications

• Weight:
  5.45 lb (2.47 kg), with battery pack and mounting tray Dimensions: 11.63 x 3.42 x 4.15 in (295 x 87 x 105 mm)
• Operating Frequency:
  406.031 MHz ±1kHz 121.5 MHz ±0.005%
• Emission Designators:
  16K0G1D (406.031 MHz) 3K20A3X (121.5 MHz)
• Peak Effective Radiated Power (EIRP):
  406 MHz: 5W (37 dBm) for 24 hours @ -20°C to 55°C (-4°F to 131°F) 121.5 MHz: 100 mW (min 20 dBm) for 50 hours @ -20°C to 55°C (-4°F to 131°F)
• Automatic Activation:
  Via Primary G-Switch by 4.5 ±0.5 ft/sec (2.3 G)
• Manual Activation:
  Via unit or remote switch
• Self-Test:
  G-Switch enabled, 406 MHz power, antenna/coax connection, and low battery
• Operating Temperature:
  -20°C to 55°C (-4°F to 131°F)
• Storage Temperature:
  -55°C to 85°C (-67°F to 185°F) Battery: 5-year Alkaline
• Remote Switch Functions:
  On/Arm/Test
• Output Connector:
  406/121.5 MHz (BNC Female)
• Mounting Tray:
  Mounting tray bottom (452-5050-1) Mounting tray top (452-3052-1) Mounting tray cap (452-5066-1)
• Mounting Strap:
  Retention strap (A3-06-3043) Certifications: FAA, EASA Via Bilateral Approved, CAAC, ANATEL, Industry Canada Pending
• Warranty:
  30 months from date of installation

Product Codes

• Mfr Part No
  8271
• PROG REQ
  ELT4000Programming
