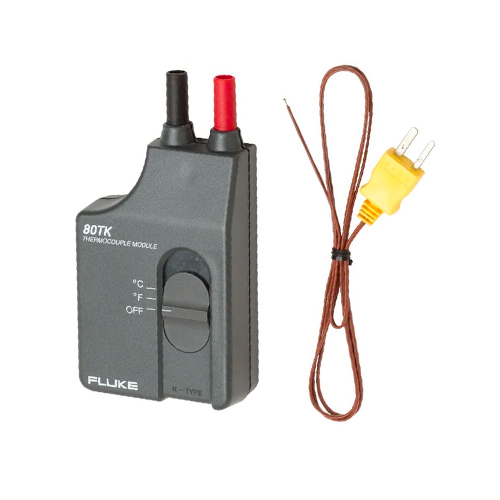

Fluke 80TK Thermocouple Module
Product Description
The Fluke 80TK is a thermocouple module for use with any K-type thermocouple and a digital multimeter. The 80TK accepts the output of any K-type thermocouple and converts it to 1 mV per degree (Celsius or Fahrenheit). A three-position switch acts as a power switch as well as selecting Fahrenheit or Celsius scaling for the output. In addition, the OFF position of the power switch allows you to read the battery condition via the external multimeter. A thermocouple input accepts wire leads or standard mini-thermocouple connectors.
Features
- Converts a DMM to a thermometer
- For use with type-K thermocouples in low voltage applications (below 24 V AC, 60 V DC)
- One year warranty
Specifications
Weight:
4.5 oz (126 g)
Overall length:
4 5/8 in (11.75 mm)
Battery:
Standard 9 V Battery (NEDA #1604, 6F22, 006P)
Battery Life:
1600+ hours, 6.5 V minimum
Output:
3/4 in spaced banana plugs, 10 MΩ minimum load resistance
Measurement Range:
-50°C to 1000°C degrees
-58°F to 1832°F degrees
Resolution:
2000 count display: 0.1 °C/F in 200 mV range | 1.0 °C/F in 2 V range
3200 count display: 0.1 °C/F in 300 mV range | 1.0 °C/F in 3V range
4000 count display: 0.1 °C/F in 400 mV range | 1.0 °C/F in 4 V range
Maximum Voltage at Thermocouple Input:
60 V dc, 24V ac
Ambient Operating Range:
0°C to 50°C
Storage Temperature:
-40°C to 60°C
-40°F to 140°F
Humidity:
0% to 90% (0°C to 35°C)
0% to 70% (35°C to 50°C)
Product Codes
- Mfr Part No:80TK
- EDMO #:80TK
- Brand:FLUKE
- Category:Wire & Cable Testers
