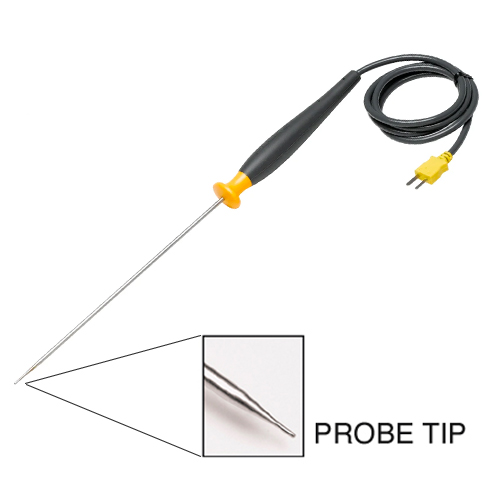

Fluke 80PK-26 SureGrip™ Tapered Temperature Probe


FLUKE

CALL FOR PRICING
Available To Order
EDMO#80PK-26
MFR#80PK-26

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The 80PK-26 SureGrip™ Tapered Temperature Probe is essentially a bead probe with a handle that can be used as a surface probe. The stainless steel sheath allows the bead to measure temperatures higher than bead probes with flexible leads. The handle also allows you to apply more focused surface pressure without having your hand in close proximity to the source. The 40-in cable is terminated with a Type-K miniature thermocouple connector with 0.312-in pin spacing.

The 80PK-26 can be used with any temperature-measuring instrument that is designed to accept Type-K thermocouples and has miniature connector input.

Features

  • Compatible with any temperature measuring instrument that accepts Type-K thermocouples
  • Miniature thermocouple connector
  • Cold reference junction compensation
  • One year warranty

Specifications

Type:
K Standard Grade Ni-Cr vs Ni-Al (Chromel vs Alumel)

Measurement Range:
-40 °C to 816 °C (-40 °F to 1500 °F)

Output:
@ 25 °C (77 °F) = 1.00 mV (reference junction @ 0 °C)

Seebeck coefficient:
25 °C (77 °F) = 40.50 μV / °C

Measurement Time:
Time Constant: 3.0 seconds for air moving at 3.33 meters / second (10.9 feet / second) at sea level pressure (5 time constants = 1 complete step change, i.e., 15 seconds)

Maximum Voltage:
24 V ac rms or 60 V dc

Maximum Temperature of Tip:
816 °C (1500 °F)

Sheath:
Material: 304 Stainless Steel
Diameter: 4.8 mm (0.19 in)
Length: 20.32 cm (8 in)

Bead (sensor) Sheath:
Material: Inconel 600
Diameter: 1.5748 mm (0.062 in)
Length: 11.049 mm (0.435 in)

Grounding:
Junction Welded to Sheath

Cable:
Length: 1 meter (40 in)
Insulation material: PVC
Maximum Temperature: 105°C (220°F)
Jacket Color: Gray

Conductors:
Type: K
Size: AWG #24 stranded (7 strands of #32)

Handle:
Material: Hytrel
Maximum Temperature: 125°C (257°F)

Connector:
Type: Mini-thermocouple connector with 0.792 mm (0.0312 in) pin spacing
Material: Yellow Hytrel
Maximum Temperature: 1.25 °C (257 °F)

Overall Probe Length:
31.9 cm (12.55 in) from tip to end of cable strain relief

Protection:
Class 3. Relates solely to insulation and grounding properties defined in IEC 348.
