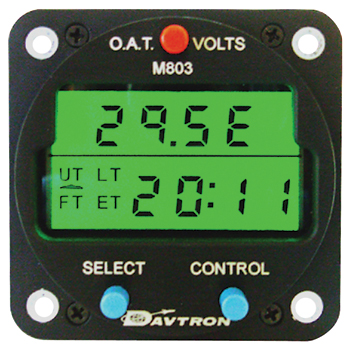

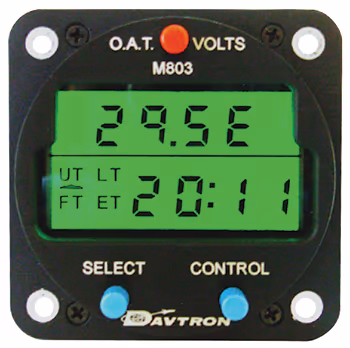

M803 Digital Clock Chronometer, O.A.T., Voltage Gauge | 5V NVIS Green A Lighting

Product Description

The M803 provides universal, local, flight and elapsed time with display annunciators. It also provides Outside Air Temperature (O.A.T.) and voltage readout. Flight time is recorded in hours and minutes, and includes an alarm with an external output for flight and elapsed time. Two buttons control clock features with another switching O.A.T. and voltage.

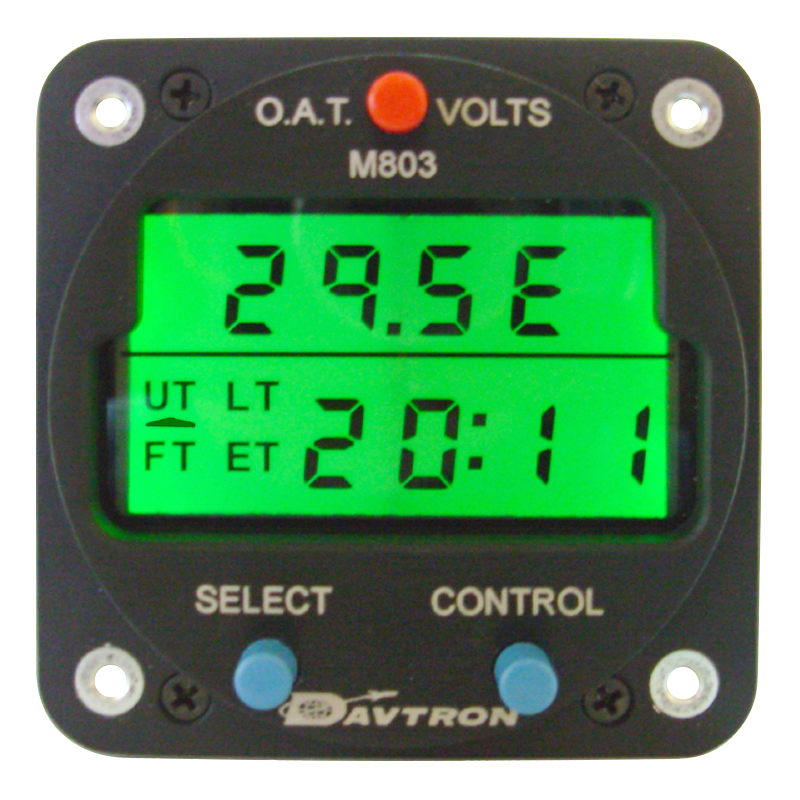

The 803-5V-NVG has 5V NVIS green A lighting and remote temperature probe.

Specifications

• Weight:
  5.02 oz
• Dimensions:
  2.375 x 2.8 x 2.375 in
• Universal Time:
  24 hour format
• Local Time:
  12 hour or 24 hour option, user selectable
• Elapsed Time Count Up:
  Starts in minutes and seconds, then hours and minutes, up to 99:59 hours
• Elapsed Time Countdown:
  Settable from one second to 59 minutes and 59 seconds
• Elapsed Time Alarm:
  Activates at zero when counting down
• Voltage Range:
  8 Volts to 32 Volts ±0.2 Volts Typ. -55°C to +100°C ±0.2°C Typ.
• Internal Lighting:
  240 mA at 5V
• Display:
  Liquid crystal display
• Keep alive current:
  0.004 Amps. 12 to 30 Volts
• Voltage:
  12 to 30 volts

Product Codes

• Mfr Part No
  M803-5V-NVG
• ECCN
  9104.00.0000
• PMA
  PQ1062NM
• SCHEDULE B CODE
  0000.00.0000
• SIN
  334511

Documentation

• M803 Brochure
