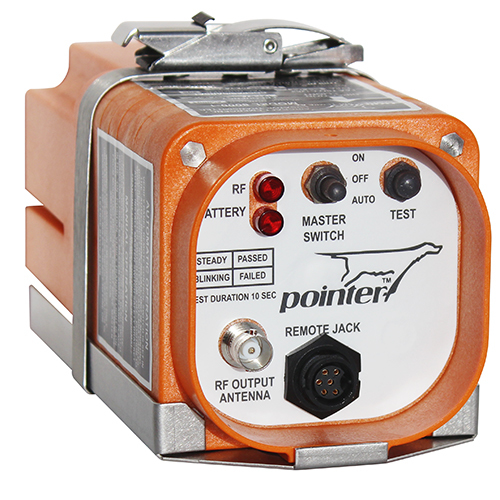

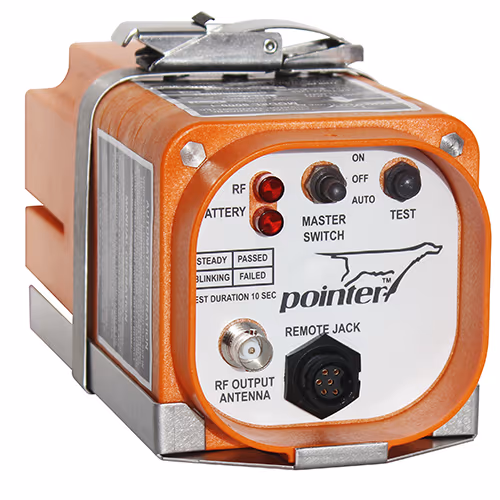

Model 8000 ELT | Includes ELT Unit & Battery Only

Product Description

The Pointer model 8000 series ELT transmits on both 406 and 121.5 Mhz, and is comprised of six interchangeable module providing a quick turn around for repair or programing. The Model 8000 ELT is compliant with TSO-C126 and COSPAS/SARSAT C/S T.001 requirements. The cockpit mounted remote switch is capable to test and reset the ELT and monitor RF signal and battery status as required be RTCA DO-204A.

Specifications

• Weight:
  3.25 lb (1.5 kg)
• Dimension:
  8.5 x 3.5 x 4 in (216 x 89 x 102 mm)
• Frequency:
  121.5 MHz / 406.037 MHz
• Temperature:
  -20°C to 55°C
• Vibration:
  0.1 in, 10-55 Hz
• Shock:
  100G, 25ms 500G, 4ms
• Crush:
  1000lb (454 kg), 3-axis

Product Codes

• Mfr Part No
  8000-1ELT

Documentation

• Model8000_manual.pdf
