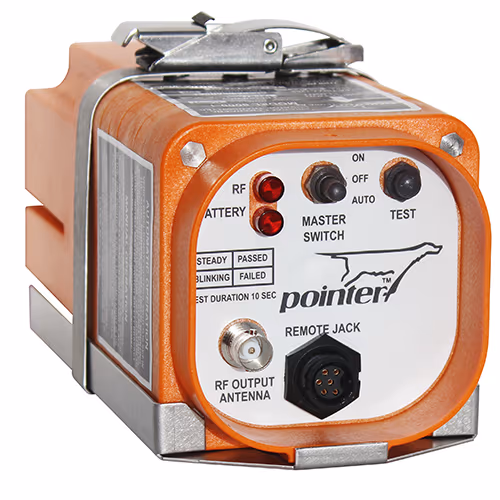

Model 8000 ELT Complete Kit | Includes 8019 Switch Kit
Product Description
The Pointer model 8000 series ELT transmits on both 406 and 121.5 Mhz, and is comprised of six interchangeable module providing a quick turn around for repair or programing. The Model 8000 ELT is compliant with TSO-C126 and COSPAS/SARSAT C/S T.001 requirements. The cockpit mounted remote switch is capable to test and reset the ELT and monitor RF signal and battery status as required be RTCA DO-204A.
Features
This Model 8000 ELT kit (EDMO# 8000-1) includes:
- Battery pack
- Mounting bracket
- External antenna
- Coax cable
- remote switch kit (for new OEM installations)
- Master switch guard kit and operation manual
Specifications
Weight:
3.25 lb (1.5 kg)
Dimension:
8.5 x 3.5 x 4 in (216 x 89 x 102 mm)
Frequency:
121.5 MHz / 406.037 MHz
Temperature:
-20°C to 55°C
Vibration:
0.1 in, 10-55 Hz
Shock:
100G, 25ms
500G, 4ms
Crush:
1000lb (454 kg), 3-axis
Product Codes
- Mfr Part No:8000-1
- EDMO #:8000-1
- Brand:POINTER
- Category:ELTs & Accessories
