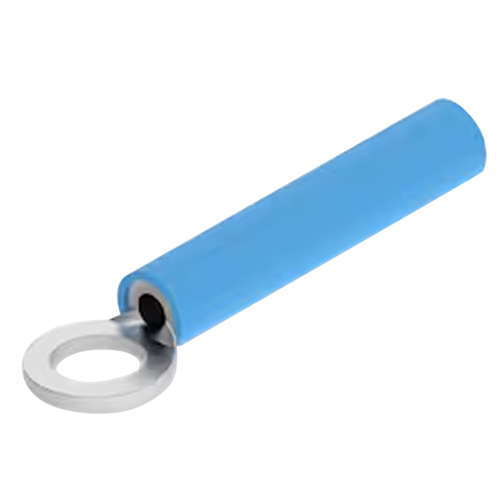

Heat Shrinkable #10 Ring Terminal | 16—14 AWG Wire Size
Product Description
Heat shrinkable, sealable ring terminals are designed for uniform reliability in the harshest circuit environments, especially where high vibration and movement become factors — especially where salt, water, and chemicals are present. These terminals are constructed of Polyolefin material that shrinks around the wire when heated providing a tight seal against environmental conditions.
This ring terminal (EDMO# 8-55852-2) has blue insulation, a #10 stud size, and used on 16—14 AWG wire.
Features
- Blue Polyolefin, heat-shrinkable insulation material
- Tin-plated copper conductor
Specifications
Color:
blue
Contact Material:
tin-plated copper
Insulation:
polyolefin
Mounting Style:
screw
Product Type:
ring terminal
Stud / Tab:
#10 stud size
Termination Style:
crimp
Voltage Rating:
600V, 1kV
Wire Gauge:
16 AWG — 14 AWG
Product Codes
- Mfr Part No:8-55852-2
- EDMO #:8-55852-2
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
