7277-5 Series Circuit Breaker | 25 Amp Rating
Product Description
Klixon 7277 series circuit breakers are meant for use in applications that do not require military approvals. The trip-free 7277 was originally developed as an alternative to slow blow fuses and is used extensively as primary electrical circuit protection on general aviation aircraft. The military grade version of this circuit breaker is the physically and electrically identical Klixon 7277, which has wider calibration limits.

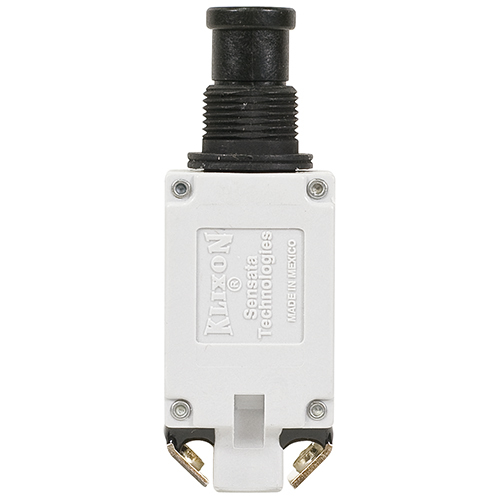

This 7277 series circuit breaker (EDMO# 7277-5-25) is rated for 25 amps.
Includes hardware.
Features
- Miniature size
- Light weight
- Trip free design
- Current ratings (0.5 to 25 amps)
- High vibration resistance
- Typical use: computers, construction, data processing and telecommunications equipment, flight simulators, general aviation aircraft, materials handling, industrial electronic equipment, trainers and simulators, where all breakers are operated on low ampere control current
Specifications
Weight:
28 grams, maximum
Current Rating:
25 Amps
Vibration:
10G minimum, 50–500 Hz (other vibration levels available)
Mechanical Shock:
35G
Acceleration:
10G
Interrupt Current:
0.50–5 amps: unlimited at 28 VDC
7.50–15 amps: 2,000 amps at 28 VDC
0.50–1.50 amps: unlimited at 120 VAC, 400 Hz
2–5 amps: 800 amps at 120 VAC, 400 Hz
7.50–20 amps: 500 amps at 120 VAC, 400 Hz
Endurance:
2,500 cycles: 120 VAC, 400 Hz inductive
5,000 cycles: 120 VAC, 400 Hz resistive
2,500 cycles: 30 VDC inductive
5,000 cycles: 30 VDC resistive
10,000 cycles: Mechanical, no load
Product Codes
- Mfr Part No:7277-5-25
- EDMO #:7277-5-25
- Brand:KLIXON
- Category:Electrical Interconnect
