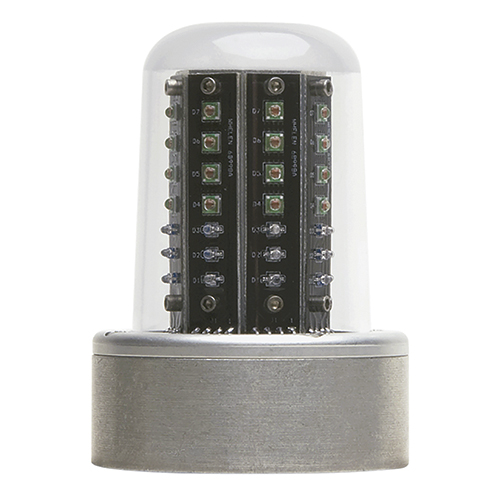

71485 Series Covert Infrared IR/Red Combination Beacon | 28 V, 2.6 in Base
Product Description
The 71485 series is a combination Aviation Red visible and IR (Infra-Red) flashing beacon that can be surface mounted in an area as small as 2.6 in or has an adapter to drop into a 3.75 in recessed mount. This unit ships with 18” flying leads, has independent control for Red and IR LED packages, and complies with FAA TSO C96a Class III. Surface mount unit & additional models are available.
This 71485 Series covert infrared IR/red combination anti-collision beacon (EDMO# 7148501) is a 28 V unit with a 2.6-inch base.
Features
- 28 VDC 71485 series covert infrared IR/red combination beacon
- 2.6-inch base with 18-inch flying leads
- Independent control for aviation red and IR LED packages
- Nominal IR LEDs at 875nm
- Complies with FAA TSO C96a Class III
Specifications
Weight:
0.670 lbs (304 g)
Exposed Height:
3.5 in (88.9 mm)
Base Width:
2.6 in (66.04 mm)
Voltage:
28 VDC
Power Consumption:
Red: 0.3 A (Average)
IR: 0.12 A (Average)
LED Color:
Aviation Red & IR
Nominal IR Wavelength:
875 nm
Lens:
Clear Polycarbonate
Mounting Position:
Vertical
Product Codes
- Mfr Part No:01-0771485-01
- EDMO #:7148501
- Brand:WHELEN ENGINEERING
- Category:Electrical & Lighting
