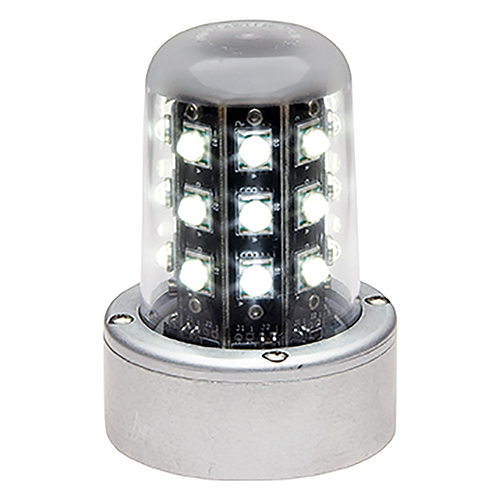

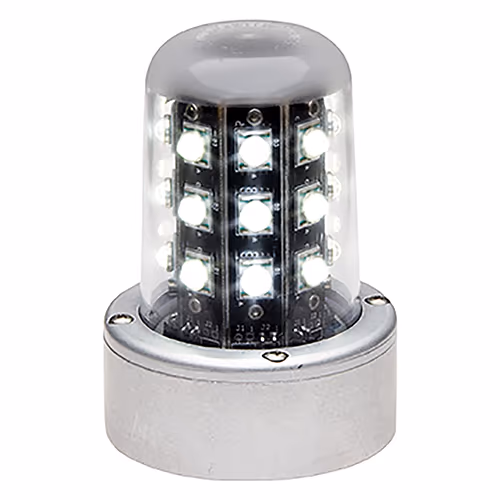

71410 Series LED Anti-Collision Light | 28 VDC, White, 3.66 in Base, Upper Mount

WHELEN ENGINEERING

CALL FOR PRICING
Out of Stock
EDMO#7141005
MFR#01-0771410-05

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The model 71410 LED white anti-collision beacons are FAA TSO compliant self-contained LED anti-collision lights. They are designed to replace rotating beacons, and 3-3/4-inch openings found on HRCFA/SACF style strobe units. These anti-collision beacons also come with a narrow base, allowing replacement of A470(A) and similar remote strobes(Contact Factory). They ship with 12-inch long flying leads and are available in 28 VDC configurations only (TSO-C96a, CLASS III).

This 71410 series LED anti-collision light (EDMO# 7141005) has a 3.66-inch upper mount base.

Features

  • 28 VDC 71410 Series LED Anti-Collision Light
  • 3.66-inch upper mount base
  • Aviation white lighting
  • FAA TSO-C96a Class III approved

Specifications

Weight:
0.75 lbs (340.19 g)

Exposed Height:
3.4 in (86.36 mm)

Diameter:
3.60 in (91.44 mm)

Voltage:
28 VDC

Power Consumption:
0.32 A

LED Color:
Aviation White

Lens:
Clear Polycarbonate

Product Codes

  • Mfr Part No:01-0771410-05
  • EDMO #:7141005
  • Brand:WHELEN ENGINEERING
  • Category:Electrical & Lighting
