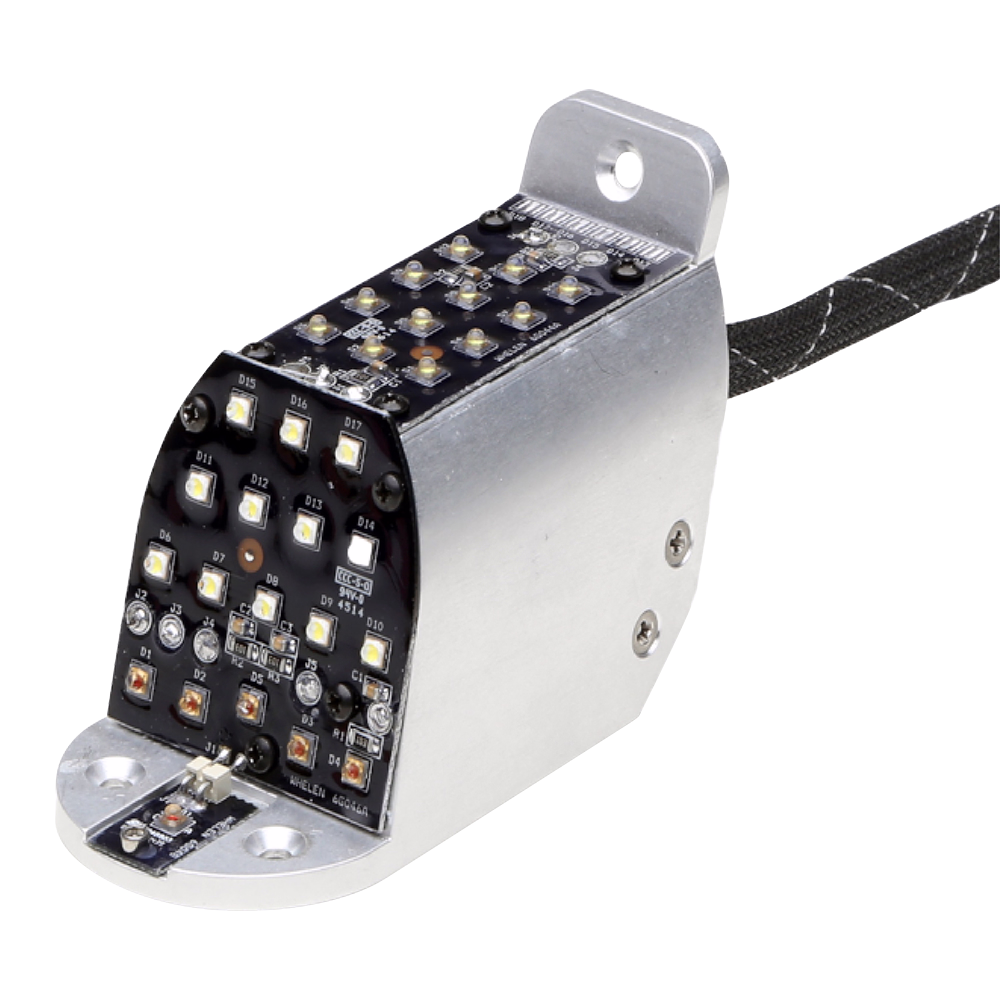

71170 Series LED Wingtip Anti-Collision/Forward Position Light | 28 VDC, Green

7117001

WHELEN ENGINEERING

CALL FOR PRICING
Special order
EDMO#7117001
MFR#01-0771170-01

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The 71170 Series is an all LED wingtip anti-collision/forward position light assembly. The design is intended to be mounted behind an existing lens and is operated by an external flasher/current source box (ref - 71234). Unit complies with TSO-C96a Class II (400 ecp) anti-collision light requirements, and TSO-C30c forward position light requirements.

This 71170 Series LED Wingtip Anti-Collision/Forward Position Light (EDMO# 7117001) is a 28 VDC unit with green LED lighting.

Features

  • 28 VDC unit with green LED lighting

  • Intended to be mounted behind an existing lens

  • Operated by an external flasher/current source box

  • TSO-C96a/TSO-C30c approved

Specifications

Weight:
0.45 lb

Dimensions:
3.97 x 1.77 x 2.33 in

Voltage:
28 VDC

Power Consumption:
0.53 Amps (Average), 2.8 Amps (Peak)

Input Connector:
MIL D38999/20F13-8PN

LED Color:
Green

Product Codes

  • Mfr Part No:01-0771170-01
  • EDMO #:7117001
  • Brand:WHELEN ENGINEERING
  • Category:Electrical & Lighting
  • ECCN:EAR99
  • SCHEDULE B CODE:8539.10.0030
  • TSO:C96a Class II, C30c Type II
