71110 Series LED Anti-Collision & Forward Position Light Assembly | Red, 28VDC
Product Description

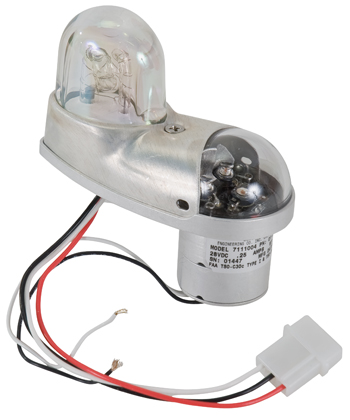

Model 71110 Series is a wing tip mounted Strobe anti-collision/position light assembly utilizing LED's for the forward position lights. The LED's provide a significant reduction in current draw over conventional position light bulbs. The Strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (Exact Footprint) for the Whelen Model A650PG/PR series without replacing the current strobe power supply. Navigation light portion is wired with flying leads.
This 71110 Series LED Anti-Collision Position Light/Strobe Assembly (EDMO# 7111004) is a 28 VDC unit with red lighting.
Features
Wingtip forward position light
Red LED strobe
Anti-collision
RFI shielded
28 VDC
Wired with flying leads
Specifications
Weight:
0.50 lb (227 g)
Dimensions:
3.88 x 1.78 x 2.39 in
Voltage:
28 VDC
Power Consumption:
0.25 A
LED Color:
Aviation Red
Lens:
Strobe: Clear RFI coated glass
Navigation Lights: Clear polycarbonate
Product Codes
- Mfr Part No:01-0771110-04
- EDMO #:7111004
- Brand:WHELEN ENGINEERING
- Category:Aircraft Lighting
- ECCN:EAR99
- ECCN:EAR99
- SCHEDULE B CODE:9405.40.0000
- SCHEDULE B CODE:9405.40.0000
- TSO:C96a, C30c
- TSO:C96a, C30c
