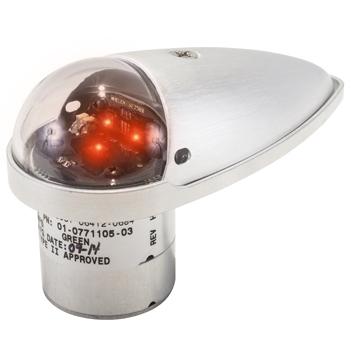

71105 Series LED Position Light Assembly | 28 VDC, Red

7110504

Product Description

The 71105 series are fully FAA TSO compliant LED Forward Position lights. LEDs provide a significant reduction in electrical current draw over conventional light bulbs. These lights are direct replacements for the Whelen Model W1285 series (Version STC on Learjet Aircraft).

This 71105 Series LED Position Light Assembly (EDMO# 7110504) is a 28 VDC unit with aviation red lighting.

Features

28 VDC Aviation red lighting
Direct replacement for Whelen Model W1285 series
FAA/TSO-C30c Type II approved

Specifications

Weight:
0.25 lbs

Exposed Height:
2.70 in (69 mm)

Operating Voltage:
28 VDC

Input Current:
0.25 A

LED Color:
Aviation Red

Lens:
Clear Polycarbonate

Product Codes

Mfr Part No:01-0771105-04A
EDMO #:7110504
Brand:WHELEN ENGINEERING
Category:Aircraft Lighting
ECCN:EAR99
ECCN:EAR99
PROAPP:PQ1372CE
PROAPP:PQ1372CE
SCHEDULE B CODE:8539.10.0030
SCHEDULE B CODE:8539.10.0030
TSO:C30c TYPE I
TSO:C30c TYPE I
