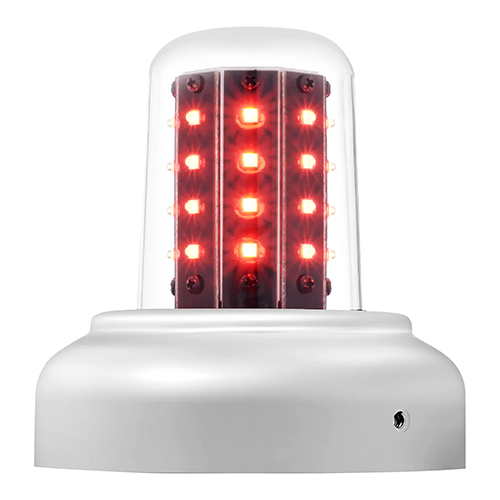

71080 Series LED Beacon | 14 VDC, Red, 3.75 in Base
Product Description
The 71080 Series LED beacons are self-contained LED anti-collision lights and TSO approved with 150 effective candlepower. These beacons are designed to replace existing beacons having a footprint that is 2-1/2 inches in diameter. Also, it can replace remotely mounted strobe lights, such as the A470 series, which allows for the power supply to be removed. An internal mounting plate provides a choice of mounting holes for most retrofit installation.
This 71080 Series LED beacon (EDMO# 7108055) has a 3.75-inch base, aviation red lighting, and operates on 14V.
Features
- 14 VDC 71080 Series LED beacon
- 3.75-inch base
- Aviation red lighting
- FAA/TSO and STC approved
Specifications
Weight:
0.75 lb (340 g)
Dimensions:
3.66 x 3.92 in (93 x 99.5 mm)
Voltage Rating:
14 VDC
Current Draw:
0.90 A (Average), 4.0 A (Peak)
LED Colors:
Aviation Red
Lens:
Clear Hardcoated Polycarbonate
Approvals:
STC: STC SA615EA
FAA/TSO-C96a Class I
Product Codes
- Mfr Part No:01-0771080-55
- EDMO #:7108055
- Brand:WHELEN ENGINEERING
- Category:Electrical & Lighting
