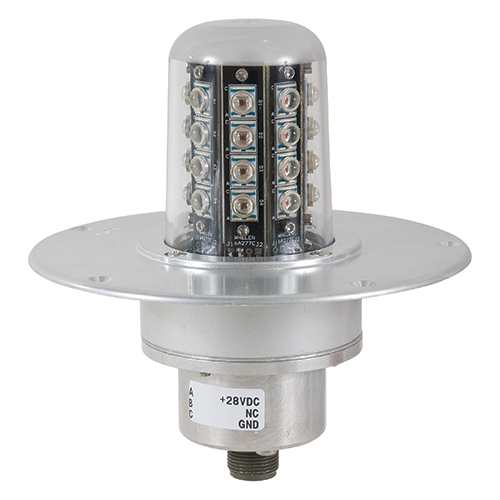

71080 Series LED Beacon | 28 VDC, Red, 5-Hole Adapter, Lower Mount, MS Connector
Product Description
The 71080 Series LED beacons are self-contained LED anti-collision lights and TSO approved with 150 effective candlepower. These beacons are designed to replace existing beacons having a footprint that is 2-1/2 inches in diameter. Also, it can replace remotely mounted strobe lights, such as the A470 series, which allows for the power supply to be removed. An internal mounting plate provides a choice of mounting holes for most retrofit installation.
This 71080 Series LED beacon (EDMO# 7108018) has a lower mounted 5-hole adapter, MS connector, aviation red lighting, and operates on 28V.
Features
- 28 VDC 71080 Series LED beacon
- Lower mounted 5-hole adapter with MS connector
- Aviation red lighting
- FAA/TSO and STC approved
Specifications
Weight:
0.75 lb (340 g)
Dimensions:
5.43 x 5.14 in (138 x 131 mm)
Voltage Rating:
28 VDC
Current Draw:
0.45 A (Average), 2.0 A (Peak)
LED Colors:
Aviation Red
Lens:
Clear Hardcoated Polycarbonate
Approvals:
STC: STC SA615EA
FAA/TSO-C96a Class I
Product Codes
- Mfr Part No:7108018
- EDMO #:7108018
- Brand:WHELEN ENGINEERING
- Category:Electrical & Lighting
- ECCN:EAR99
- SCHEDULE B CODE:8539.10.0030
- TSO:C96a CLASS I
