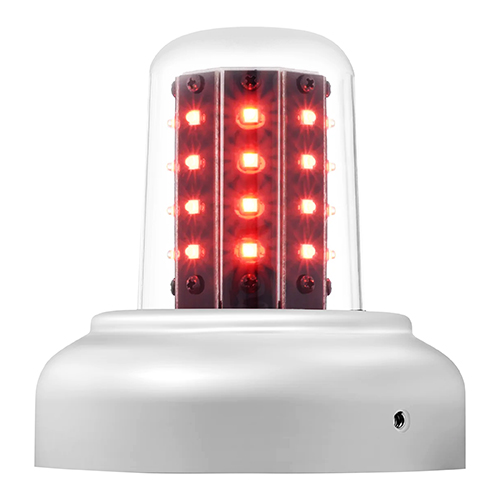

71080 Series LED Beacon | 28 VDC, Red, 3.75 in Base, MS Connector

7108017

WHELEN ENGINEERING

CALL FOR PRICING
Available To Order
EDMO#7108017
MFR#01-0771080-17

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

The 71080 Series LED beacons are self-contained LED anti-collision lights and TSO approved with 150 effective candlepower. These beacons are designed to replace existing beacons having a footprint that is 2-1/2 inches in diameter. Also, it can replace remotely mounted strobe lights, such as the A470 series, which allows for the power supply to be removed. An internal mounting plate provides a choice of mounting holes for most retrofit installation.

This 71080 Series LED beacon (EDMO# 7108017) has a 3.75-inch base, MS connector, aviation red lighting, and operates on 28V.

Features

  • 28 VDC 71080 Series LED beacon
  • 3.75-inch base with MS connector
  • Aviation red lighting
  • FAA/TSO and STC approved

Specifications

Weight:
0.75 lb (340 g)

Dimensions:
3.64 x 2.6 x 4.61 in (92 x 66 x 117 mm)

Voltage Rating:
28 VDC

Current Draw:
0.45 A (Average), 2.0 A (Peak)

LED Colors:
Aviation Red

Lens:
Clear Hardcoated Polycarbonate

Approvals:
STC: STC SA615EA
FAA/TSO-C96a Class I

Product Codes

  • Mfr Part No:01-0771080-17
  • EDMO #:7108017
  • Brand:WHELEN ENGINEERING
  • Category:Electrical & Lighting
