71080 Series LED Beacon | 28 VDC, Red, 5-Hole Adapter, MS Connector

7108008

WHELEN ENGINEERING

CALL FOR PRICING
In Stock
EDMO#7108008
MFR#7108008

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

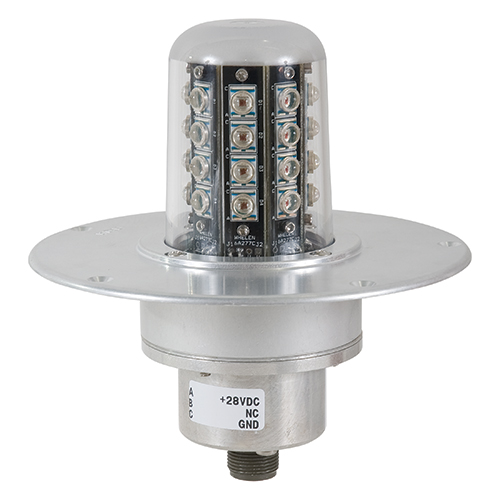

The 71080 Series LED beacons are self-contained LED anti-collision lights and TSO approved with 150 effective candlepower. These beacons are designed to replace existing beacons having a footprint that is 2-1/2 inches in diameter. Also, it can replace remotely mounted strobe lights, such as the A470 series, which allows for the power supply to be removed. An internal mounting plate provides a choice of mounting holes for most retrofit installation.

This 71080 Series LED beacon (EDMO# 7108008) has a 5-hole adapter, MS connector, aviation red lighting, and operates on 28V.

Features

  • 28 VDC 71080 Series LED beacon
  • 5-hole adapter with MS connector
  • Aviation red lighting
  • FAA/TSO and STC approved

Specifications

Weight:
0.75 lb (340 g)

Dimensions:
5.43 x 5.14 in (138 x 131 mm)

Voltage Rating:
28 VDC

Current Draw:
0.45 A (Average), 2.0 A (Peak)

LED Colors:
Aviation Red

Lens:
Clear Hardcoated Polycarbonate

Approvals:
STC: STC SA615EA
FAA/TSO-C96a Class I

Product Codes

  • Mfr Part No:7108008
  • EDMO #:7108008
  • Brand:WHELEN ENGINEERING
  • Category:Electrical & Lighting
