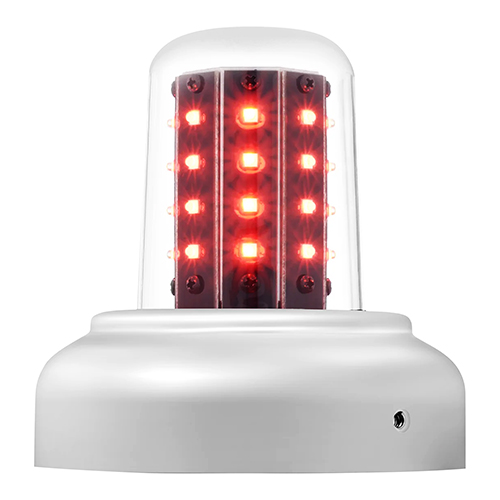

71080 Series LED Beacon | 28 VDC, Red, 3.75 in Base

Product Description

The 71080 Series LED beacons are self-contained LED anti-collision lights and TSO approved with 150 effective candlepower. These beacons are designed to replace existing beacons having a footprint that is 2-1/2 inches in diameter. Also, it can replace remotely mounted strobe lights, such as the A470 series, which allows for the power supply to be removed. An internal mounting plate provides a choice of mounting holes for most retrofit installation.

This 71080 Series LED beacon (EDMO# 7108005) has a 3.75-inch base, aviation red lighting, and operates on 28V.

Specifications

• Weight:
  0.75 lb (340 g)
• Dimensions:
  3.66 x 3.92 in (93 x 99.5 mm)
• Voltage Rating:
  28 VDC
• Current Draw:
  0.45 A (Average), 2.0 A (Peak)
• LED Colors:
  Aviation Red
• Lens:
  Clear Hardcoated Polycarbonate
• Approvals:
  STC: STC SA615EA FAA/TSO-C96a Class I

Product Codes

• Mfr Part No
  01-0771080-05
• ECCN
  EAR99; 9A991.D
• SCHEDULE B CODE
  8541.40.2000
• TSO
  FAA TSO-C96a CLASS 1 (150ECP)
