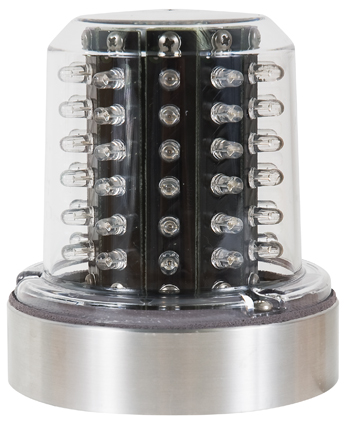

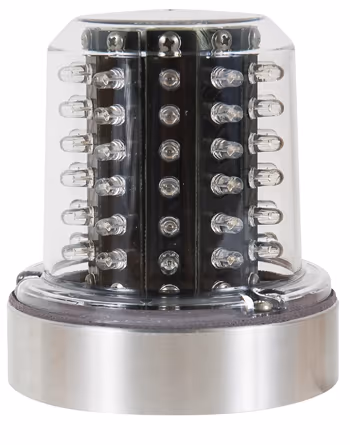

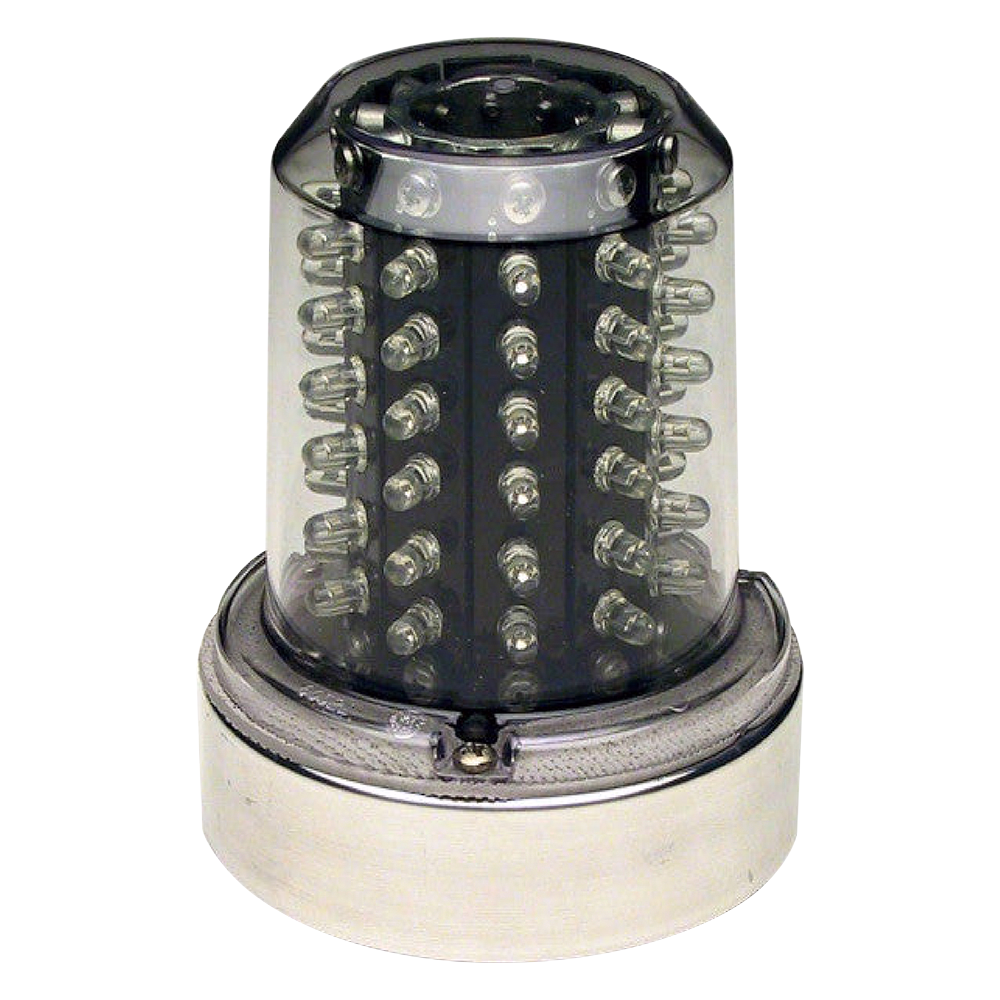

70980 Series IR LED Beacon | Upper Mount

7098000

WHELEN ENGINEERING

CALL FOR PRICING
Special order
EDMO#7098000
MFR#7098000

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

Model 70980 Series is a self-contained IR LED anti-collision light. This light is currently used on several Military aircraft platforms as well as marine use, and can be easily adapted to suit a variety of applications for use in the NVG environment. Product has been tested to DO160 environmental standards. Shipped with flying leads. Lower mount has drain hole in lens.

This 70980 Series IR LED Beacon (EDMO# 7098000) is upper mounted.

Features

  • 28 VDC 70980 Series IR LED Beacon

  • Upper mounted

  • Infrared lighting

Specifications

Weight:
1.0 lb (454 g)

Dimensions:
4.04 x 3.66 in (103 x 93 mm)

Operating Voltage:
28 VDC

Average Input Current:
0.1 Amps

Peak Input Current:
0.63 Amps @ .25 Seconds

LED:
Infrared (875 nm)

Flash rate:
45 +/- fpm

Lens:
Clear hard-coated polycarbonate

Product Codes

  • Mfr Part No:7098000
  • EDMO #:7098000
  • Brand:WHELEN ENGINEERING
  • Category:Aircraft Lighting
  • ECCN:EAR99
  • ECCN:EAR99
  • SCHEDULE B CODE:8539.10.0030
  • SCHEDULE B CODE:8539.10.0030
