SI 205 Radar Altimeter Control Head | For Garmin GRA 55/5500

Product Description

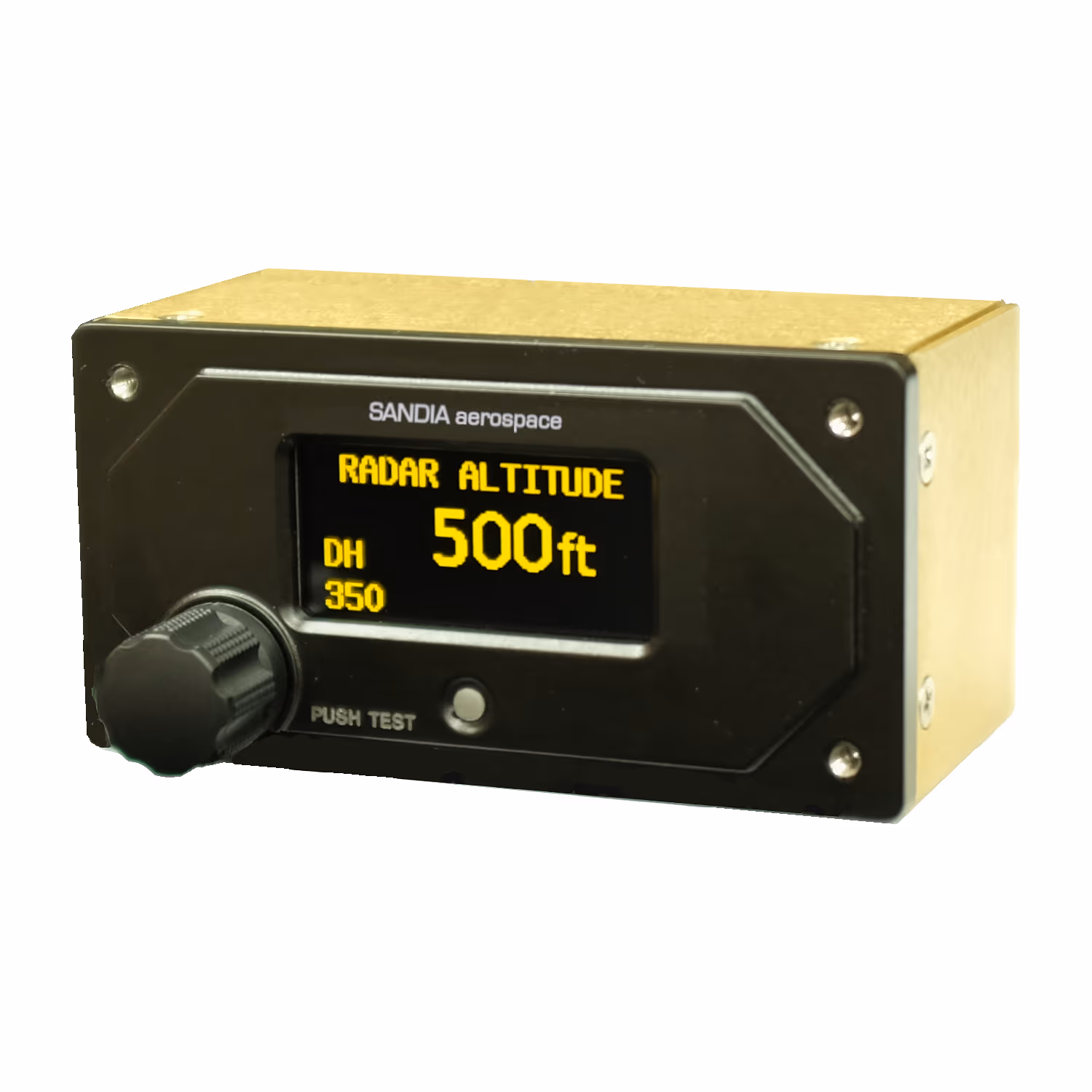

The SI 205 is a Radar Altimeter control head designed to operate with the Garmin GRA 55/5500 radar altimeter systems. It is a direct replacement for the GI205. The stand-alone SI 205 represents the best-in-class technology available for stand-alone radar altimeters displays. It’s built to meet the needs of even the most demanding helicopter and general aviation applications. Together, the GRA 55 and GI 205 can comprise a complete radar altimeter solution. The total system’s reliability and accuracy, along with its flexible display capabilities, make it an optimal solution for operators equipping for NVIS operations or Part 135 operators looking to meet FAA requirements.

Specifications

• Weight:
  0.5 lb (0.23 kg)
• Panel Cut Out:
  1/2 3ATI
• Behind Panel Dimensions:
  1.78 x 3.5 x 1.87 in (4.52 x 8.89 x 4.75cm)
• Operating Voltage:
  11–32 VDC
• Current:
  14 VDC 120 mA, 28 VDC 60 mA
• Display:
  128x64 Dot Matrix OLED
• Altitude Display Range:
  -40 to 2500 ft
• Unrounded Altitude Display Resolution:
  1 ft throughout the range
• Audio Alerts:
  Selectable between 1Khz tone, Male (min) or Female (min)
• Audio Power:
  80mW into 600 Ohms at Maximum volume.
• Balanced Audio Range:
  40dB. Muted at minimum volume setting
• ARINC 429 Receive:
  Label 164. High speed and Low speed selectable
• Decision Height Discrete Output:
  Active Low (RA Altitude <DH) <0.5V@200mA
• Inhibit DH Input:
  Normally not connected. Connect to ground to remove decision height function
• GRA Altitude Alert Discrete Inputs:
  1V threshold@1mA

Product Codes

• Mfr Part No
  706273-10
• ECCN
  7A994
• SCHEDULE B CODE
  8526.92.0000
