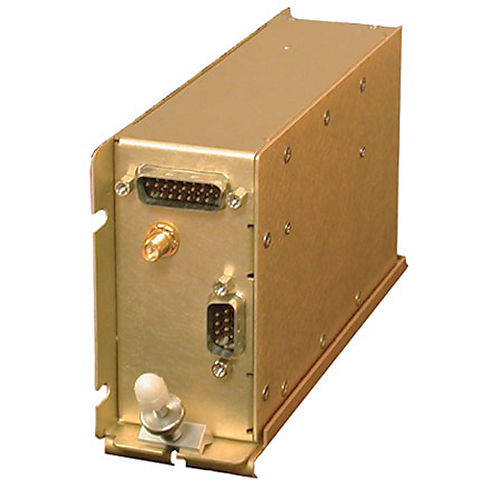

STX-165R Remote Transponder
Product Description
The STX-165R Remote Mode C Transponder is a remote unit that is controlled by existing aircraft navigation units. This transponder provides a 200 watt nominal output and works with units from MGL, GRT, DYNON Avionics and Advance Flight. Low weight and power consumption make this unit an ideal choice for use in UAVs. The STX-165R accepts either Gilham Gray Code or RS-232 altitude input for Mode C operation and can be mounted vertically or horizontally with or without a mounting tray.
Features
- Provides 200 watts nominal output
- Ideal for LSA, glider, and UAV operations with a low current requirement
- Compact and lightweightweighing only 1.16 lb
- ADS-B Compatible
- DO160F, DO 178B level C, TSO C74d certified
Specifications
Weight:
1.16 lb
Dimensions:
3 x 1.8 x 6.9 in
Input Voltage:
11 VDC – 33 VDC
Current requirements:
360 mA @ 14 VDC
180 mA @ 28 VDC
Power Output:
200 watts, nominal
Transmitter Frequency:
1,090 KHz
Receiver Frequency:
1,030 MHz
Receiver Sensitivity:
-74 dBm @ 90% reply rate, nominal
Inputs:
Grey Code
RS-232
Temperature:
-20°C to 55°C
Altitude:
-1,000 to 35,000 ft
Certification:
DO160F, DO 178B level C, TSO C74d
Product Codes
- Mfr Part No:705831-00
- EDMO #:705831-00
- Brand:SANDIA AEROSPACE
- Category:Transponders, Altitude Encoders & Serializers
