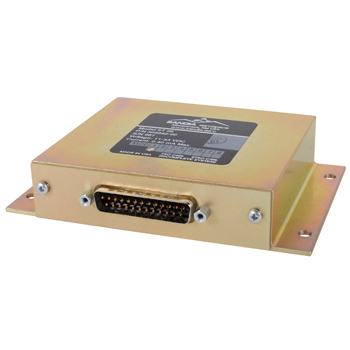

ST 26 Tach Generator Adapter

705662-00

Product Description

The ST 26 is a Tach Generator Adapter that converts sinusoidal, 26 VAC – 400 Hz output of the Turbine Engine Tach Generators to a digital signal. This TSO approved adapter can be used for aircraft instrument displays or other control/data collection systems. The ST 26 is approved to work with the most common aircraft tachometers models.

Specifications

Weight:
0.5 lbs

Dimensions:
3.35 x 5.06 x 0.99 in

Operating Voltage:
11–33 VDC

Current:
0.10 A (Per Channel); 0.40 A (Total)

Input Signal Frequency Range:
4–100 Hz

Input Signal Amplitude Range:
4.25–150 VPP

Operating Temperature:
-55ºC to 70ºC

Maximum Operating Altitude:
55,000 ft

Product Codes

Mfr Part No:305662-00
EDMO #:705662-00
Brand:SANDIA AEROSPACE
Category:Inverters & Converters
ECCN:7A994
ECCN:7A994
SCHEDULE B CODE:9014.20.8040
SCHEDULE B CODE:9014.20.8040
TSO:C49B (INCOMPLETE SYSTEM)
TSO:C49B (INCOMPLETE SYSTEM)
