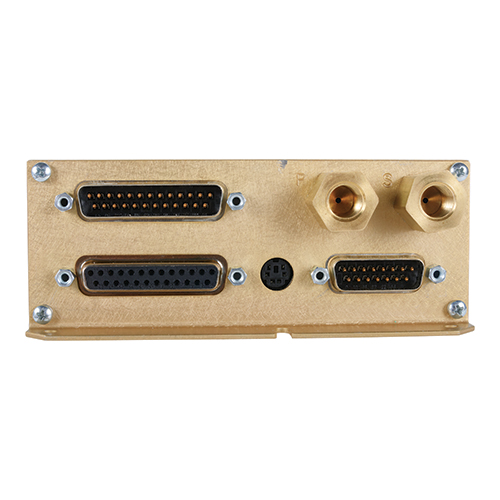

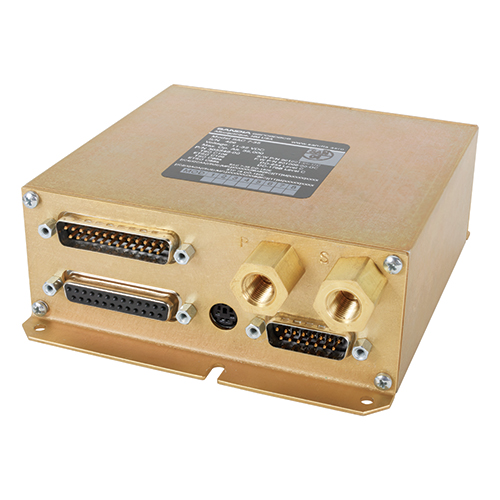

SAC 7-35 Air Data Computer | ADS-B for Garmin 400W/500W

Product Description

The SAC7-35-01 Airdata Computer provides ADS-B functionality for the Garmin 400W/500W navigators and certain Mode S transponders. As a full featured air data computer, the SAC7-35 supplies altitude encoder, altitude alerting, fuel flow, and air data to navigation systems. SAC 7-35 is an FAA TSO approved altitude encoder that provides RS-232 for newer generation transponders as well as standard Gilham Grey code for legacy transponders. The system is also equipped with SANDIA’s altitude inflight monitoring (AIM) that alerts pilots whenever the aircraft deviates 100 feet or more from selected altitude. When paired with a fuel flow transducer, the SAC 7-35 provides all the fuel flow data required for navigation systems to monitor fuel flow.  The SAC 7-35 is also a fully TSO’s airdata computer with multiple interface formats that provide data to a wide variety of avionics systems.

Specifications

• Weight:
  1.18 lb
• Dimensions:
  5.62 x 4.87 x 1.89 in
• Electrical:
  10 – 32 VDC @ 1 amp, max
• Inputs:
  ARINC 407 Synchro Heading OAT Pitot (airspeed) Static (Altitude) Track, Mag, Var & Ground from on-board GPS 5-volt pot baro Fuel flow, pulse GPS position (-01 version only)
• Air Speed:
  KTS: 40 – 450 MACH: 01 – 0.99
• Wind Speed:
  0 – 200 KTS
• Vertical Speed:
  ±9,999 ft/min ±20,000 on ARINC bus
• Air Temperature:
  -60°C to 60°C
• Accuracy:
  1.5°C
• Altitude:
  35,000 ft, max
• Resolution:
  100 ft (Grey Code) 10 ft (RS-232) 10 ft (ARINC 429)
• Accuracy:
  ±25 ft (-1,000 to 5,000 ft) ±30 ft (5,001 to 11,000 ft) ±35 ft (11,001 to 20,000 ft) ±50 ft (20,001 to 30,000 ft) ±75 ft (30,001 to 35,000 ft)
• Fuel Flow:
  Flow rate: 1 – 14,400 GPH per side K-factor range: 500 – 130,000
• ADS-B:
  ARINC 743 labels (-01 version only)
• Certification:
  TSO C88a, ETSO C88a TSO C106, ETSO C106 DO160E DO178 level C DO254

Product Codes

• Mfr Part No
  705548-01
• ECCN
  7A994
• ETSO
  C88a
• SCHEDULE B CODE
  9014.20.8040
• TSO
  C88a
