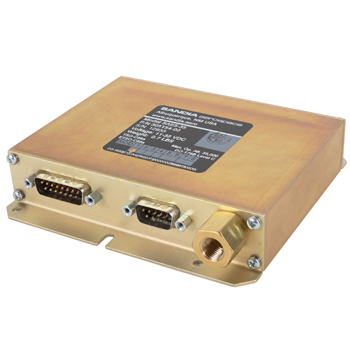

SAE 5-35 Altitude Encoder | RS232, 35,000 ft

SANDIA AEROSPACE

Call For Pricing

In stock

EDMO # 705154-00

MFR Part # 705154-00 / 305154-00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The SAE 5-35 altitude encoder provides accurate altitude data by combining altitude encoding, digital altitude on two RS-232 outputs, and altitude inflight monitoring (AIM) into a single compact and reliable unit. The SAE 5-35 provides Gillham Grey Code to the aircraft’s Mode C transponder using innovative pressure circuitry that greatly reduces warm up time. This unit provides altitude data from -1,000 to 35,000 feet — ideal for installations in piston, turbine, and jet aircraft.

Features

Certified to 35,000 feet
Transponder Grey Code resolution in 100 feet
AIM system maintains selected altitude
Alerts when deviations of 100 ft or more occur
Two RS232 digital output with 10 foot resolution
Digital altitude for GPS and TAWS systems
Altitude In-flight monitoring
Low profile — only 1.1 inch — for versatile mounting options
TSO approval

Also Purchased

Specifications

Weight:

0.7 lb
Dimensions:

4.87 x 4.74 x 1.06 in.
Altitude inflight monitoring (AIM) output:

80mA maximum lamp current 50V maximum off voltage
Power input:

11-33 VDC
Current:

0.9 A (with heater on)
Outputs:

One grey code Two RS232
Resolution:

Grey code 100 ft RS232 10 ft
Accuracy:

50 ft or better throughout range
Altitude:

35,000 ft
TSO:

C88a
