70513 Series IR LED Light Emitter | 28 VDC, 30 Hz

7051300

WHELEN ENGINEERING

CALL FOR PRICING
Out of Stock
EDMO#7051300
MFR#01-0770513-00

Need help placing an order?
Call 800-235-3300 or Contact Us

Product Description

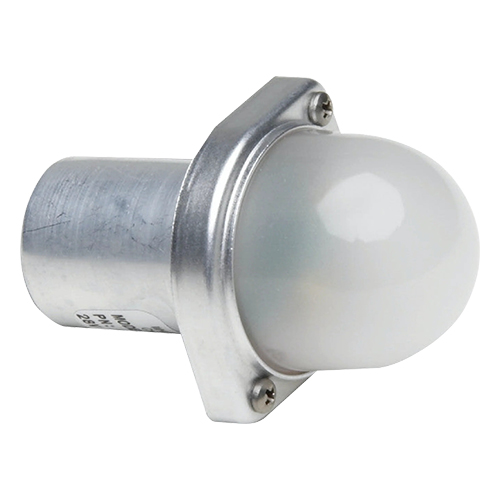

The Model 70513 Series is an IR Emitter used to identify aircraft or vehicles in the non visible light spectrum. This IR emitter is a good choice when viewing objects with video or light amplification devices and the assembly ships with a set of 36 flying leads.

This 70513 series IR LED light emitter (EDMO# 7051300) is a 28 VDC unit and has a 30 Hz flash frequency.

Features

  • 28 VDC IR LED light emitter
  • 30 Hz flash frequency

Specifications

Weight:
0.2 lbs (91 g)

Exposed Height:
1.4 in (36 mm)

Voltage Rating:
28 VDC

Flash Frequency:
30 Hz

LED IR Emitter Light Power Consumption:
19 mA @ 28 VDC

LED Colors:
Infrared, 890 nm Wavelength

Lens:
Heat Resistant Glass (Frosted)

Product Codes

  • Mfr Part No:01-0770513-00
  • EDMO #:7051300
  • Brand:WHELEN ENGINEERING
  • Category:Electrical & Lighting
