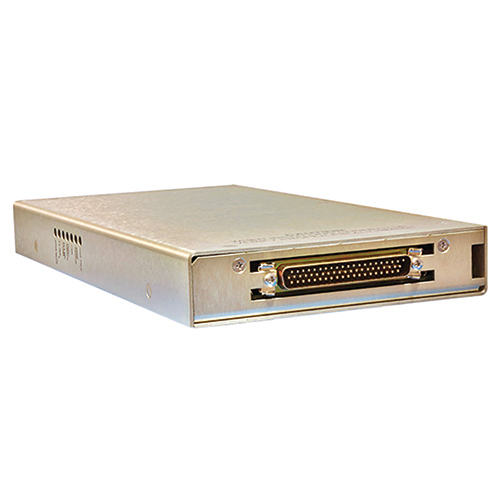

Model 700 | (007) Digital Audio Control Amplifier
Product Description
The compact, lightweight Model 700 Digital Audio Amplifier pairs with the Model 800 Series Digital Audio Controllers which are commonly used in corporate and special mission fixed-wing aircraft like the Beechcraft King Air. The combination of these units provides microphone audio switching and keying operations for radio transmitters, receivers, and passenger address amplifier control.
Version (EDMO# 700-007) is calibrated for Raytheon Hawker 800XP.
Features
Inputs:
- 15 receiver/transceiver inputs
- 6 dedicated audio sidetone inputs
- 4 unswitched and unmuted auxiliary inputs
- Interphone
Outputs:
- Headphone
- Cockpit speaker
- CVR
- Selected COMM
- Interphone
Specifications
Weight:
1.6 lb
Dimensions:
10.45 x 1.13 x 5.1 in.
Power:
28V, 1 amp max
TSO C50c Compliance:
DO-160C, DO-178A Level 2
Product Codes
- Mfr Part No:700-007
- EDMO #:700-007
- Brand:CANYON AEROCONNECT
- Category:Aircraft Audio
