7-539 Low Pass Filter | 30MHz–530MHz, Tchebyscheff Filter
Product Description

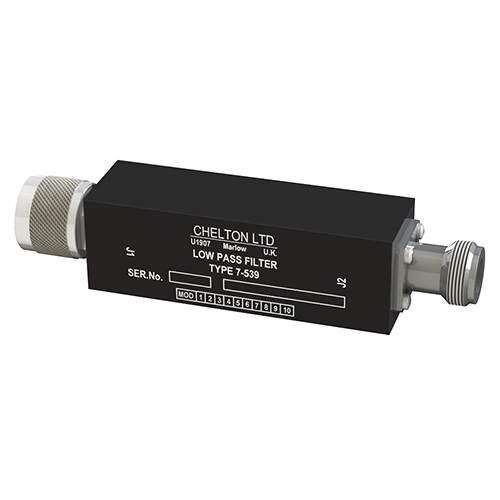

The 7-539 VHF/UHF low-pass filter is designed to operating between the frequencies from 30 MHz to 530 MHz and stop signals from 960 MHz to 1,220 MHz. It is designed for general subsonic airborne applications. This filter is constructed using aluminum to enclose its discrete component circuitry and features N-type male and female connector at each end.
Features
- Tchebyscheff filter type
- 30 MHz to 530 MHz frequency range
- 960 MHz to 1,220 MHz Stop signls frequencies
Specifications
Weight:
0.18 kg (maximum)
Dimensions:
123.444 x 26.516 mm (maximum)
Pass Band:
30 MHz – 530 MHz
Impedance:
50Ω (nominal)
VSWR:
<1.5:1
Insertion Loss:
<0.5 dB
Stop Band:
960 MHz – 1,220 MHz
Isolation:
>60 dB
Power Handling:
50 watt CW (maximum)
Connector:
N-type female & N-type male
Temperature:
-54°C to 55°C, operational
-57°C to 85°C, storage
Altitude:
9,144 m
Product Codes
- Mfr Part No:7-539
- EDMO #:7-539
- Brand:CHELTON
- Category:Antennas & Couplers
