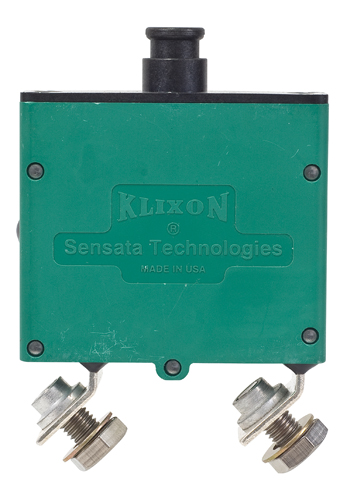

6752-100 Series Circuit Breaker | 90 Amp Rating, Push Button

Select an option

KLIXON

Call For Pricing

In stock

EDMO # 6752100-90

MFR Part # 6752-100-90

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 6752-100 series thermal–magnetic circuit breakers are designed and manufactured to meet stringent military standards with the reliability of the 6752 design. These circuit breakers feature a single pole, push button switch design.

The 6752-100 is similar to the 6752-12 in size, with higher interrupting capacity, vibration resistance and longer cycling life. In addition, the 6752-100 series provides ambient compensation, fault coordination of all ratings and an option for auxiliary circuits.

Includes hardware.

Features

This 6752-100 series circuit breaker (EDMO# 6752100-90) is rated for 90 amps.
Current ratings: 50–100 amps
Proven reliability and performance of the 6752 series circuit breaker
Trip–free design
Circuit protection unaffected by temperature fluctuations
MIL-C-5809 qualified
Ambient compensated
High vibration resistance
High interrupting capacity: 6,000 amps
Typical use: Military

Also Purchased

Specifications

Weight:

0.25 lbs (114 gm) max
Specification

Current Rating: 90 amps
Vibrations:

10 G’s minimum, 50-2000 Hz
Mechanical shock:

30G
Acceleration:

10G
Endurance:

5,000 cycles: 120 VAC. 400 Hz, inductive 5,000 cycles: 120 VAC 400 Hz, resistive 5,000 cycles: 28 VDC, inductive 2,500 cycles: 28 VDC, resistive 5,000 cycles: Mechanical, no load
Specification

Mounting: Screw terminals and neck mounting
