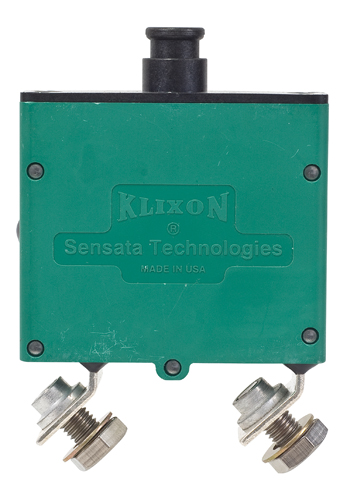

6752-100 Series Circuit Breaker | 80 Amp Rating, Push Button
Product Description
The 6752-100 series thermal–magnetic circuit breakers are designed and manufactured to meet stringent military standards with the reliability of the 6752 design. These circuit breakers feature a single pole, push button switch design.
The 6752-100 is similar to the 6752-12 in size, with higher interrupting capacity, vibration resistance and longer cycling life. In addition, the 6752-100 series provides ambient compensation, fault coordination of all ratings and an option for auxiliary circuits.
Includes hardware.
Features
This 6752-100 series circuit breaker (EDMO# 6752100-80) is rated for 80 amps.
- Current ratings: 50–100 amps
- Proven reliability and performance of the 6752 series circuit breaker
- Trip–free design
- Circuit protection unaffected by temperature fluctuations
- MIL-C-5809 qualified
- Ambient compensated
- High vibration resistance
- High interrupting capacity: 6,000 amps
- Typical use: Military
Specifications
Weight:
0.25 lbs (114 gm) max
Current Rating:
80 amps
Vibrations:
10 G’s minimum, 50-2000 Hz
Mechanical shock:
30G
Acceleration:
10G
Endurance:
5,000 cycles: 120 VAC. 400 Hz, inductive
5,000 cycles: 120 VAC 400 Hz, resistive
5,000 cycles: 28 VDC, inductive
2,500 cycles: 28 VDC, resistive
5,000 cycles: Mechanical, no load
Mounting:
Screw terminals and neck mounting
Product Codes
- Mfr Part No:6752-100-80
- EDMO #:6752100-80
- Brand:KLIXON
- Category:Electrical Interconnect
