PIDG Quick Disconnect Tab | Series 250, 12 – 10 AWG, Male Straight Mount
Product Description
The series 250 miniature FASTON terminal connectors feature a low insertion force in applications where there is not enough space for traditional, full-sized straight receptacle. These quick connectors have a tin-plated brass construction for a continuous current rating up to seven amps and 14 amp intermittent current.

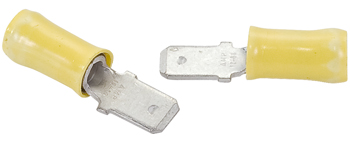

This PIDG quick disconnect tab (EDMO# 66025-2) has a straight connector and fits 12 – 10 AWG wire.
Features
- Fits within confined spaces
- Low insertion force provides increased comfort
- Meets UL 310 & CSA C22.2 No. 153 requirements
Specifications
Dimensions:
27.94 x 7.62 mm
Color:
yellow
Contact Material:
tin-plated copper
Insulation:
vinyl
Mounting Angle:
straight
Mounting Style:
push in
Product Type:
quick disconnect tab
Product Series:
250 Faston
Stud / Tab Size:
6.35 x 0.81 mm
Termination Style:
crimp
Wire Gauge:
12 – 10 AWG
Product Codes
- Mfr Part No:66025-2
- EDMO #:66025-2
- Brand:TE CONNECTIVITY
- Category:Electrical Interconnect
