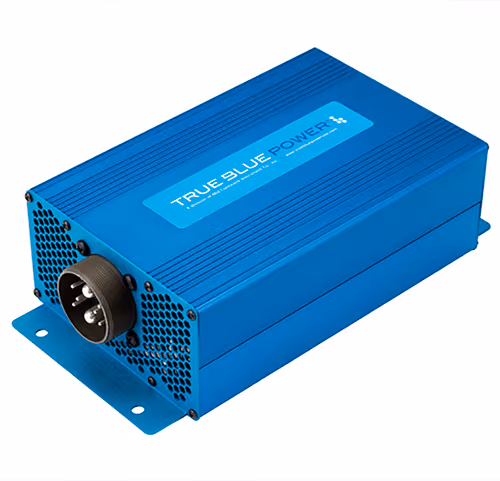

TI2004 DC-to-AC Inverter | 115 VAC, 400 Hz
Product Description
The TI2004 DC-to-AC Inverter supplies 2,000 watts of 400 Hz power to cabin and galley accessories, including entertainment systems, personal electronic devices, microwave ovens and coffee makers. This TSO-certified inverter is smaller, lighter and more efficient than competing units and can operate in a three-phase configuration by using three units interconnected, producing 6,000 watts of power.
Features
- Supplies 2,000 watts of wall outlet power
- Ideal for emergency medical equipment, special mission and VIP cabin configurations
- Lightweight — 7.7 lbs
- 93% efficiency
- Input transient, overload and short-circuit protection — up to 150% of rated load without damage
- Remote On/Off optional
- FAA TSO-C73 certified
- EASA ETSO-C73 certified
- RTCA DO-160G qualified
- Designed and built in Wichita, Kansas, USA
Specifications
Weight:
7.7 lbs (3.49 kg)
Input Voltage:
20 – 36 VDC
Input Current:
80 A at 28 VDC input
Output Voltage:
115 VAC ± 3%
Output Power:
2,000 VA
Output Frequency:
400 Hz ± 0.1%
Output Waveform:
Single phase, true sine wave,
< 3% total harmonic distortion
Altitude:
55,000 ft
Humidity:
Tested to greater than 95% for 10 days,
temperature cycle of 75°F to 160°F
Temperature:
-67°F to +158°F (-55°C to +70°C)
Integral Cooling:
Dual, electronically-controlled brushless fans
Mating Connector:
P/N 9018784-1
P/N 9018550-2 (cable clamp / backshell)
Case:
Anodized aluminum extrusion, blue
Certification:
FAA TSO-C73 certified
EASA ETSO-C73 certified
RTCA DO-160G qualified
Product Codes
- Mfr Part No:6432000-4
- EDMO #:6432000-4
- Brand:TRUE BLUE POWER
- Category:Inverters & Converters
