TB60 Aircraft Battery | 26.4 VDC, 60 Ah, Lithium-ion, TSO
Product Description

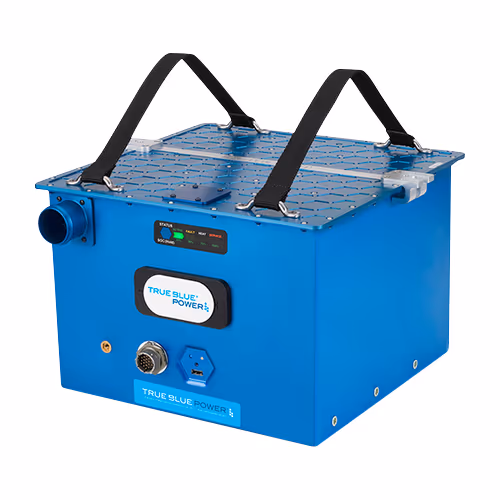

The Gen5 TB60 Lithium-ion Aircraft Battery delivers constant monitoring, protection and capacity data. Its Battery Management System (BMS) is exclusive to True Blue Power Gen5 batteries and is trusted by the most respected aircraft manufacturers. A built-in heater ensures superior cold weather performance, down to -40°C. The TB60 is FAA TSO certified with on-condition maintenance and a two-year limited warranty.
Features
- 60 amp-hour nominal at 23°C/73°F
- Weighs 52.9 lbs — up to 60% less than lead-acid and NiCad solutions
- Advanced NanoPhosphate® lithium-ion cell chemistry
- Higher voltage during engine start — Less wear, less maintenance and increased useful life
- Superior high-temperature and cold-weather performance from -40°C to +70°C (-40°F to +158°F)
- More than 1 amp-hour per pound
- Automatic internal heater
- Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
- Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
- On-condition maintenance
- Designed and built in Wichita, Kansas, USA
- FAA TSO Certified
- Two-year limited warranty
Specifications
Weight:
52.9 lbs. (24.0 kg)
Dimensions:
12.5 x 14.4 x 8.9 in
Capacity:
60 amp-hour nominal (at 23°C/73°F)
Charge Voltage:
28 VDC nominal
Output Voltage:
26.4 VDC nominal
Output Current:
425 A continuous (1,500 A max)
Technology:
Advanced NanoPhosphate® lithium-ion cell chemistry
Energy Density:
66 Wh/Kg
Charge Current Limiting:
Programmable up to 8C or unlimited
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Configuration:
24P8S; 4 parallel x 8 in series x 6
Life Expectancy:
8 years (average)
Maintenance:
On-condition
Case:
Anodized aluminum, blue
Certification:
FAA TSO-C179b (Class A-4B)
RTCA DO-311A
RTCA DO-160G
RTCA DO-178C DAL A
UNDOT/IATA
Product Codes
- Mfr Part No:6431060-1
- EDMO #:6431060-1
- Brand:TRUE BLUE POWER
- Category:Auxiliary Power Units & Battery Chargers
- ECCN:9A991
- ECCN:9A991
- SCHEDULE B CODE:8507.60.0000
- SCHEDULE B CODE:8507.60.0000
