TA202 High Power USB Charging Port | USB-A, Bottom Power Connector, Lighted
Product Description
The TA202 USB series high power USB charging port converts 10 VDC to 32 VDC volts from the aircraft to a standard 5 volt power that can charge any electronic device that uses a USB connector for charging — including cell phones, GPS devices, and tablets. The TA202 provides one or two, USB-A or USB-C ports and can be mounted in a variety of locations throughout the aircraft. This unit is certified to FAA TSO C71 and qualified to multiple RTCA DO-160 requirements which provides confidence and allows installation in the cockpit or cabin.

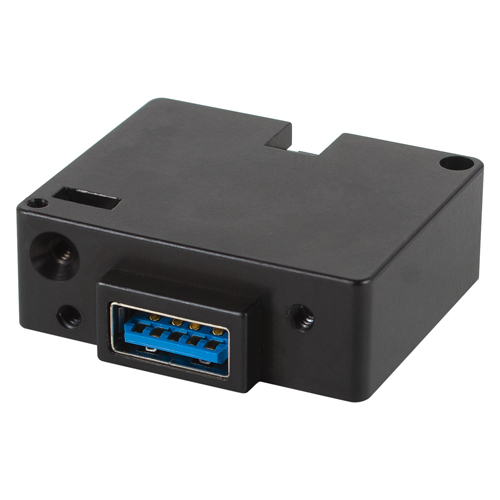

This TA202 (EDMO# 6430202-20) has a USB-A connector in the front, a bottom power input connector, and is lighted.
Features
- Provides 3.0 amps per charging port simultaneously
- 10 VDC – 32 VDC input voltage
- 5 VDC ±0.25 output voltage per port
- Single Type-A USB connector
- Short-circuit, over-current, and over-temperature protection
- In-seat, cabin, and cockpit mount
- Designed and built in Wichita, Kansas, USA
Specifications
Weight:
0.8 oz (23 g)
Dimensions:
1.5 x 0.52 x 1.25 in
Input Voltage:
10 VDC – 32 VDC
Input Power:
18 W per port, maximum
Output Voltage:
5 VDC ±0.25 per port
Output Current:
3.0 amps per port
USB Connector:
Type-A
Power Input:
Bottom
Mating Connector Kit:
MCI P/N 9017960 (included)
Mounting:
In-seat, cabin, cockpit; front or rear mount
Certifications:
FAA TSO C71 certified
RTCA DO-160G qualified
Product Codes
- Mfr Part No:6430202-20
- EDMO #:6430202-20
- Brand:TRUE BLUE POWER
- Category:Electrical Interconnect
