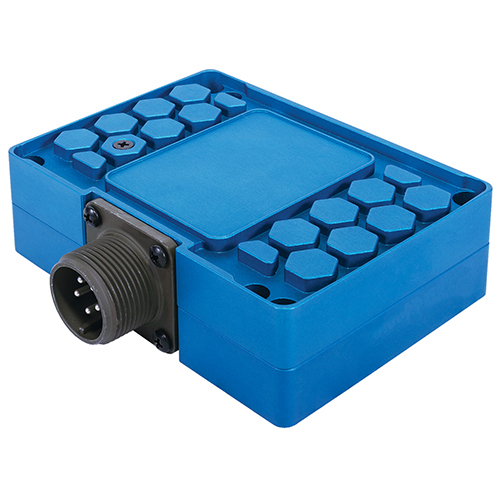

TC120 DC-to-DC Converter | 120 Watt
Product Description
The TC120 DC-to-DC power converter produces 120 watts of DC power from an aircraft's 28 VDC input. Compact and lightweight, the TC120 saves space and reduces weight. It produces enough energy to power electronic equipment throughout the aircraft — including in-seat, cabin, and cockpit power applications.
Features
- Supplies 120 watts of DC output power
- Adjustable 5 VDC – 18 VDC output voltage
- 22 VDC – 32 VDC input power
- Compact and lightweight design — only 0.65 lb
- Input transient, reverse polarity, overload and short circuit protection, and temperature monitoring
- 95% efficiency
- Optional remote On/Off
- Mounts in the floor, cabin wall, or outside the pressure vessel
- Designed and manufactured in Wichita, Kansas
Specifications
Weight:
0.65 lb
Dimensions:
2.75 x 3.75 x 1.29 in
Input Voltage:
22 VDC – 32 VDC
Input Current:
5.0 A, nominal
Output Voltage:
5 VDC – 18 VDC
Output Power:
120 watts
Regulation:
1% load, 2% temperature
Altitude:
55,000 ft
Temperature:
-67°F to 158°F (-55°C to 70°C)
Circuit Protection:
Input transient
Overload
Short circuit
Temperature monitoring
Reverse polarity

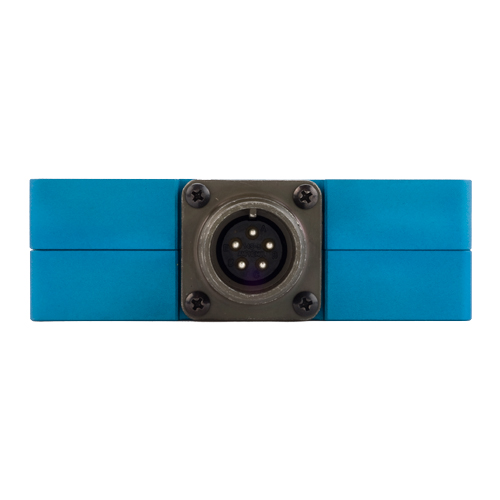

Mating Connector:
MCI P/N 9018651 (included)

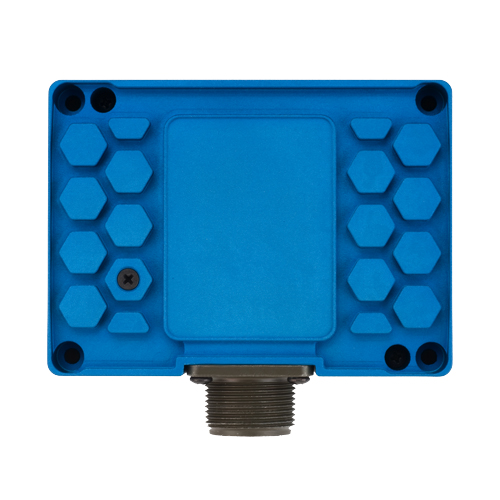

Case:
Blue anodized aluminum
Certification:
FAA TSO-C71 certified
RTCA DO-160G qualified
Product Codes
- Mfr Part No:6430120-1
- EDMO #:6430120-1
- Brand:TRUE BLUE POWER
- Category:Inverters & Converters
