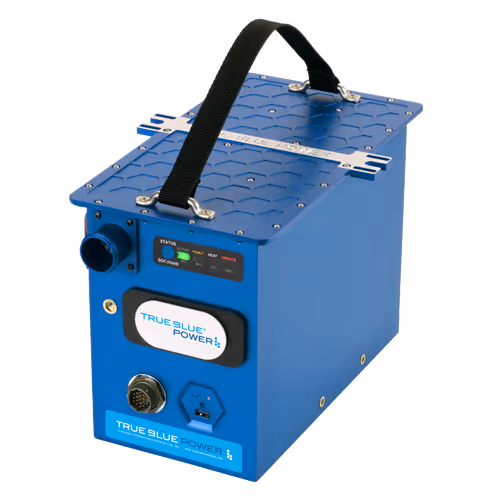

TB30 Advanced Lithium-Ion Battery | 30 amp-hour
Product Description
The TB30 lithium-ion aircraft battery is configurable to meet the needs of each specific aircraft, including charge current limit, end-of-life capacity, minimum dispatch capacity and engine-start readiness. The intelligent battery systems communicate real-time, reliable and accurate state of charge and state of health. The TB30 weighs up to 60% less, and delivers more amps per pound, than any other battery. This translates into more power for engine starts, more energy for emergency and back-up power, ultra-fast recharge and much longer life.
Features
- 30 amp-hour battery at 23ºC, nominal
- Lighter than lead-acid and nickel-cadmium alternatives — only 28.5 lb
- Advanced NanoPhosphate® lithium-ion cell chemistry
- Superior performance at extreme temperatures (-40°C to 70°C)
- Overcharge, over-discharge, over-current, short circuit, over-temperature, under-temperature and charge current limiting protection
- Built-in Test (BIT) Indicator communicates real-time state-of-charge and state-of-health
- Higher voltage during engine start — Less wear, less maintenance and increased useful life
- On-condition maintenance
Specifications
Weight:
28.5 lb
Dimensions:
12.5" L x 8.6" W x 8.8" H
Charge Voltage:
28 VDC nominal
Output Voltage:
26.4 VDC
Output Current:
840A continuous, 1440A max
Technology:
Advanced NanoPhosphate® lithium-ion cell chemistry
Energy Density:
61.3 Wh/Kg
Charge Current Limiting:
Programmable up to 4C or 10C unlimited
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Configuration:
12P8S; 4 parallel x 8 in series x 3
Life Expectancy:
8 years (average)
Case:
Anodized aluminum, blue
Product Codes
- Mfr Part No:6430030-1
- EDMO #:6430030-1
- Brand:TRUE BLUE POWER
- Category:Auxiliary Power Units & Battery Chargers
