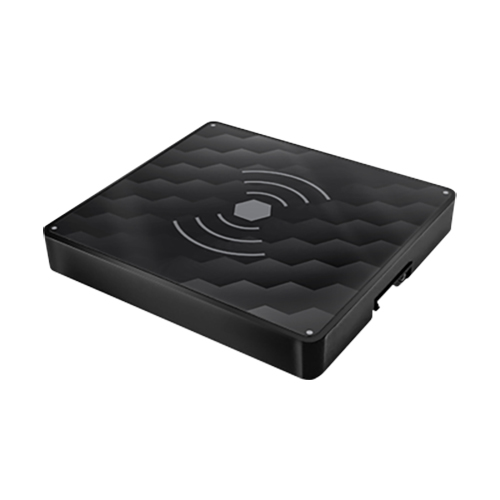

TWC15 Wireless Charger | 15W, Single Coil, Compact
Product Description
Charge personal electronic devices, including smartphones, earbuds, and more with True Blue Power’s second-generation wireless chargers. The quick-charging TWC15 Wireless Charger can be mounted in a variety of locations throughout the aircraft, is quick charging, and Qi/Qi2 compliant.
Features
- Charging, Charge Complete and Fault status indication
- Short circuit, power surges, overload, over-temperature, reverse polarity and foreign object detection protection
- Ideal for in-seat, cabin and cockpit applications
Specifications
Weight:
5.0 ounces (141 grams)
Dimensions:
2.28 x 2.45 x 0.39 in
Output Power:
15W (maximum)
Input Power:
26W (maximum)
Input Voltage:
12–32 VDC, 2.2 A at 14 VDC, 0.9 A at 28 VDC
Charging Depth:
Up to 0.4” (10 mm)
Mating Connector Kit:
P/N 9019739-1 (included)
Mounting:
(4) #2-56 threaded holes
Installation:
In-seat, cabin and cockpit
Case:
Anodized aluminum, black
Certification:
FAA TSO C71
RTCA DO-160G
Product Codes
- Mfr Part No:6430015-21
- EDMO #:6430015-21
- Brand:MID-CONTINENT INSTRUMENTS AND AVIONICS
- Category:Auxiliary Power Units & Battery Chargers
